Steering Column Shrouds: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

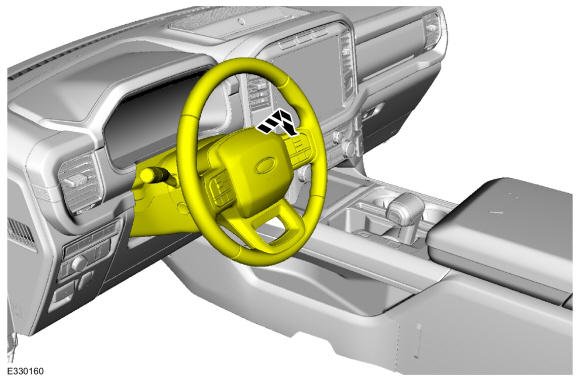

Fully extend and lower the steering column.

Courtesy of FORD MOTOR COMPANY

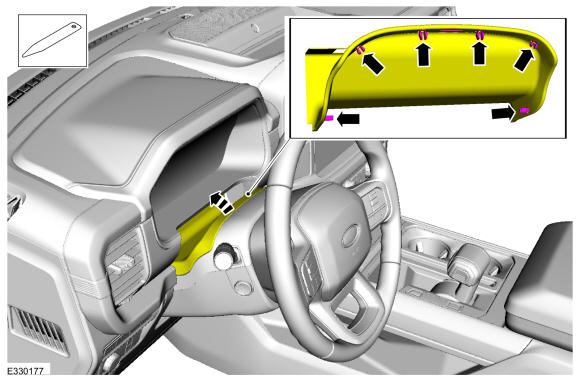

Release the tabs and disconnect the gap hider from the upper steering column shroud.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

Vehicles with column shift
NOTE: Gear selector lever removed for clarity.

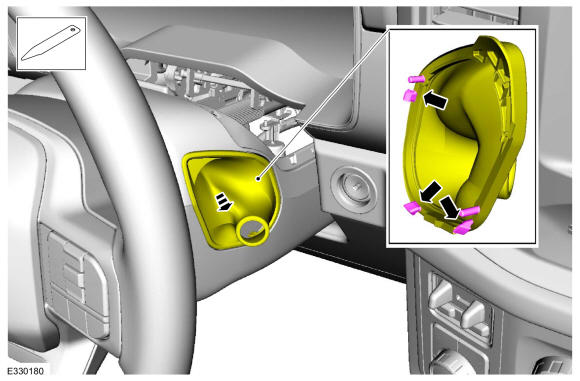

Release the tabs and position the gear selector boot aside.

Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

All vehicles

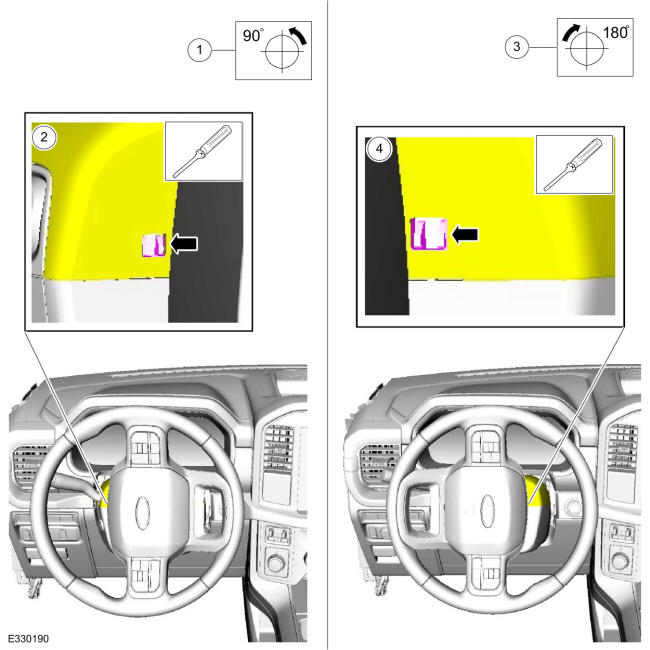

Release the retainers
1. Rotate the steering wheel 90 degrees to the left.
2. Release the LH retainer.
  Use the General Equipment: Flat Headed Screw Driver
3. Rotate the steering wheel 180 degrees to the right.
4. Release the RH retainer.
  Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY
NOTE: Gap hider removed for clarity.

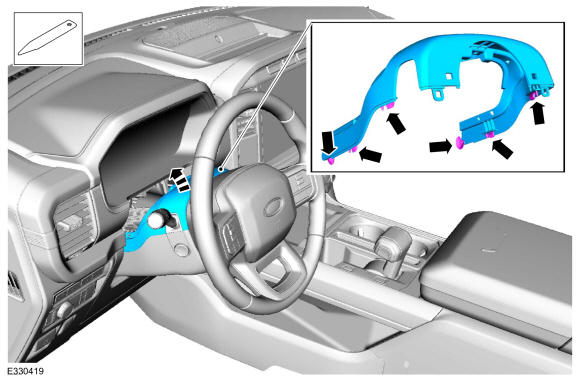

Release the outer clips on both sides and remove the upper steering column shroud.

Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

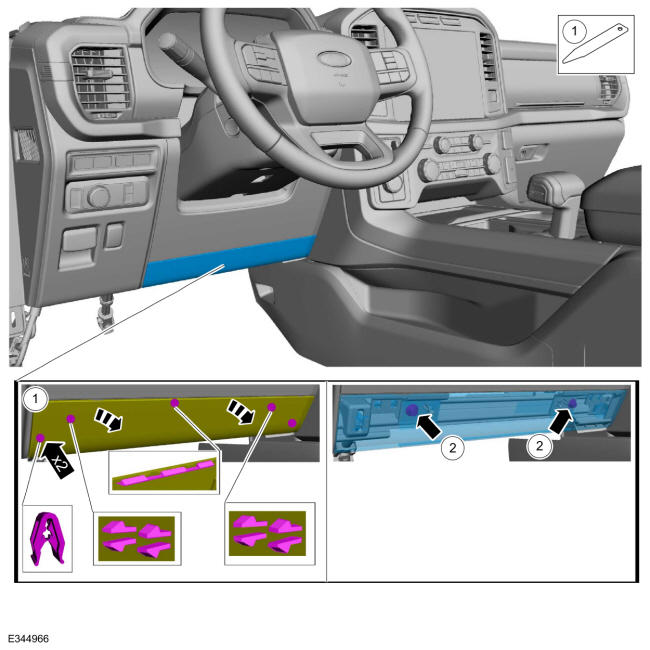

Remove the lower instrument panel trim panel.
1. Release the clips and the tabs and position the lower instrument panel trim panel downward.
  Use the General Equipment: Interior Trim Remover
2. Remove the lower instrument panel trim panel bolts.
Courtesy of FORD MOTOR COMPANY

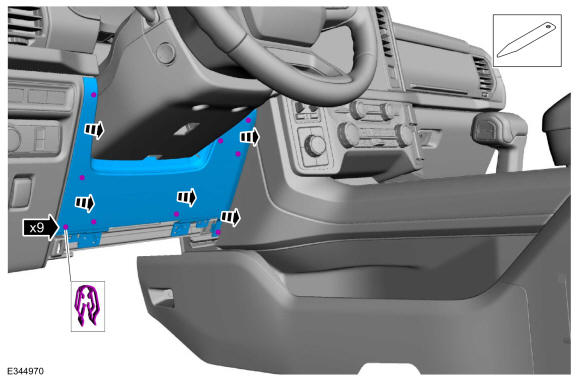

Release the clips and remove the instrument panel upper trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
NOTE: Steering column opening trim panel removed for clarity.

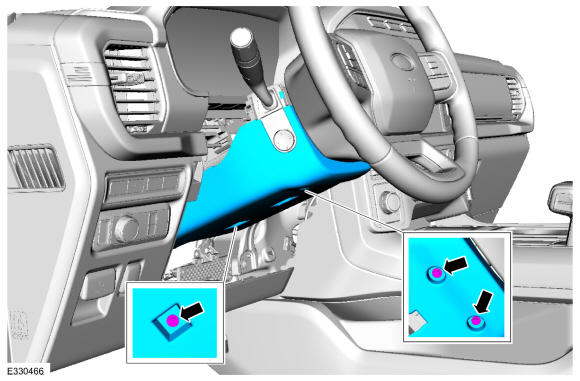

Remove the bolts and the lower steering column shroud.

Courtesy of FORD MOTOR COMPANY
