Loadspace Trim Panel - SuperCab/SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

SuperCab

On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .
SuperCrew
On both sides. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
All vehicles
If equipped. Remove the subwoofer speaker. Refer to: Subwoofer Speaker .
If equipped. Remove the DSP. Refer to: Audio Digital Signal Processing (DSP) Module .

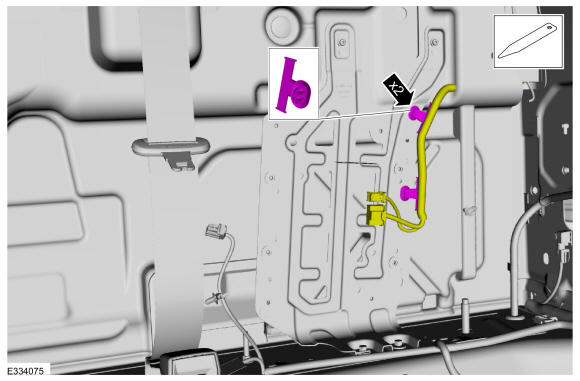

If equipped. Release the retainers and disconnect the DSP wiring harness from the DSP bracket.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

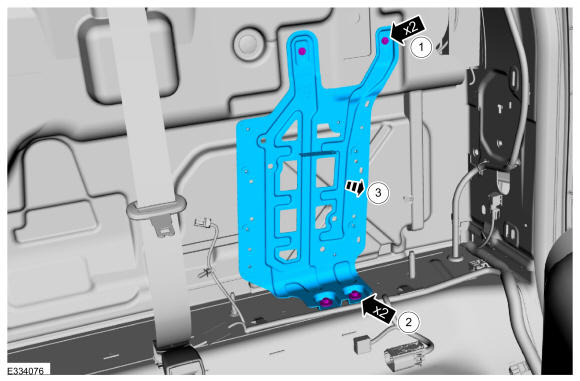

If equipped. Remove the DSP bracket.
1. Remove the DSP bracket screws.
2. Remove the DSP bracket bolts.
  Torque

  : 177 lb.in (20 Nm)
3. Remove the DSP bracket.
Courtesy of FORD MOTOR COMPANY
Remove the vehicle jack.
1. Remove the vehicle jack tie down retainer.
2. Position the vehicle jack tie down aside.
3. Remove the vehicle jack.
Courtesy of FORD MOTOR COMPANY
Remove the bolts and the vehicle jack bracket.
Torque

: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the center seatbelt rear guide cover.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the center seatbelt front guide cover.
1. Remove the retainer.
2. Position the center seatbelt through the slot and remove the center seatbelt front guide cover.
Courtesy of FORD MOTOR COMPANY

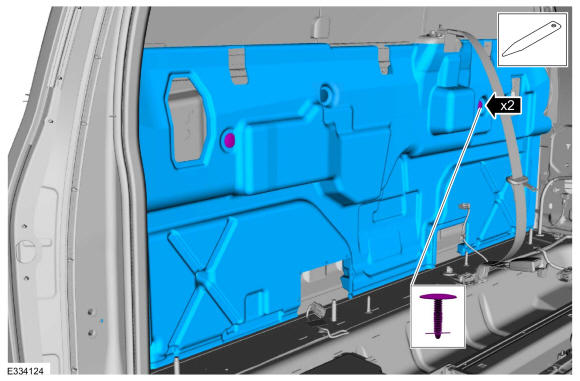

Remove the pin-type retainers and the loadspace trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
