Loadspace Trim Panel - Regular Cab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .

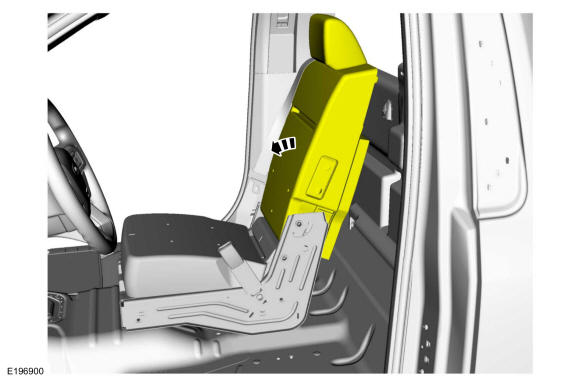

If equipped. Position the center seat backrest forward.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the center seatbelt rear guide cover.

Courtesy of FORD MOTOR COMPANY

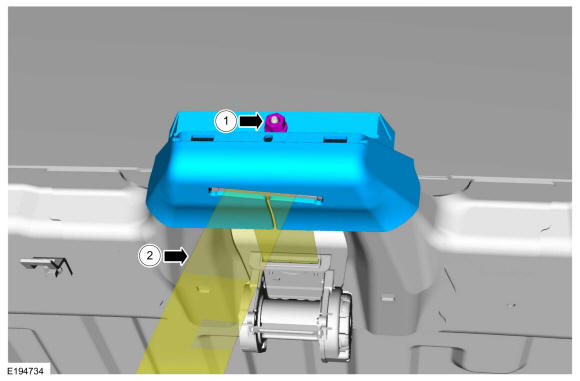

If equipped. Remove the center seatbelt front guide cover.
1. Remove the retainer.
2. Position the center seatbelt through the slot and remove the center seatbelt front guide cover.
Courtesy of FORD MOTOR COMPANY

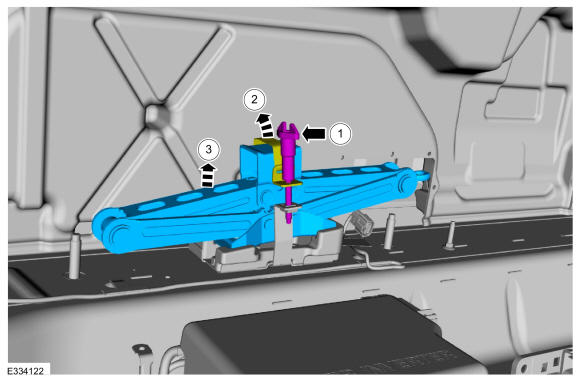

Remove the vehicle jack.
1. Remove the vehicle jack tie down retainer.
2. Position the vehicle jack tie down aside.
3. Remove the vehicle jack.
Courtesy of FORD MOTOR COMPANY

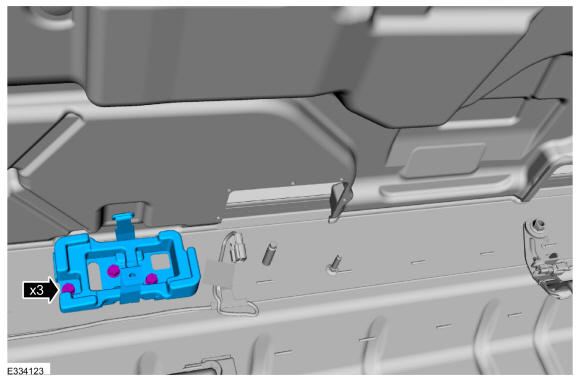

Remove the bolts and the vehicle jack bracket.
Torque

: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY

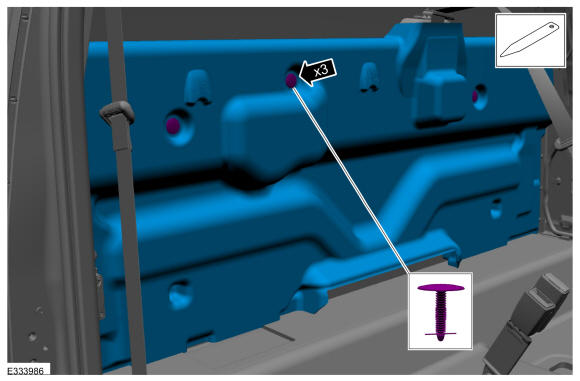

Remove the pin-type retainers and the loadspace trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
