Headliner - SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

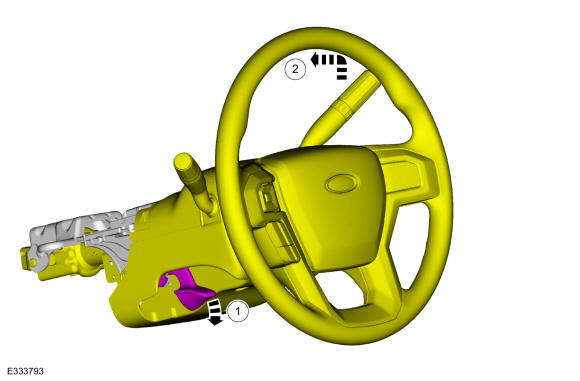

Position the steering column fully inward and upward.
1. If equipped. Release the steering column lock.
2. Position the steering column fully inward and upward.
Courtesy of FORD MOTOR COMPANY
Remove the following items:
1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
2. On both sides. Remove the upper B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCrew .
3. On both the sides. Remove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
4. On both sides. Remove the front seats. Refer to: Front Seat .
5. If equipped. Remove the front center seat. Refer to: Front Center Seat .
6. If equipped. Remove the floor console. Refer to: Floor Console .
7. On passenger side. Remove the front door. Refer to: Front Door - Regular Cab/SuperCrew .
NOTE: LH (left hand) side shown in illustration, RH (right hand) side similar.

On both sides. Remove the sun visor.
1. Remove the bolt cover.
2. Remove the bolt.
3. Remove the sun visor.
4. If equipped. Disconnect the sun visor electrical connector.
Courtesy of FORD MOTOR COMPANY
On both sides. Remove the bolt and the sun visor clip.

Courtesy of FORD MOTOR COMPANY
On LH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the windshield interior trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Disconnect the headliner wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY

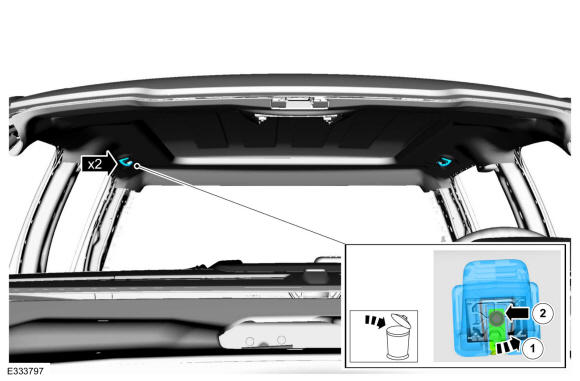

On both sides. Remove and discard the garment hooks.
1. Open the garment hook retainer cover.
2. Remove the screw and the garment hook.
Courtesy of FORD MOTOR COMPANY

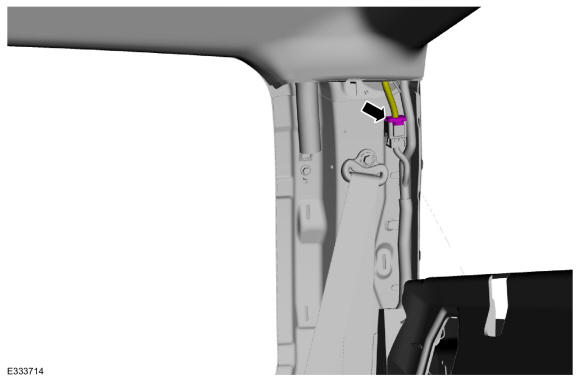

On LH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY

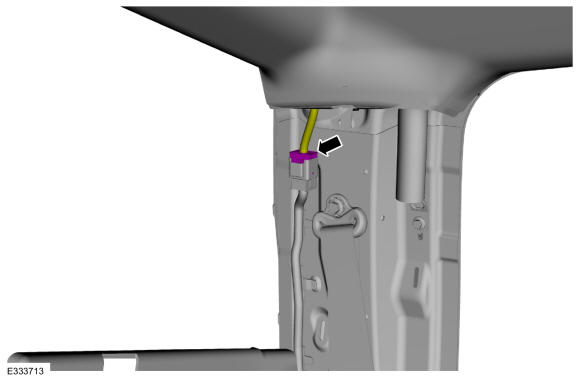

On RH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY

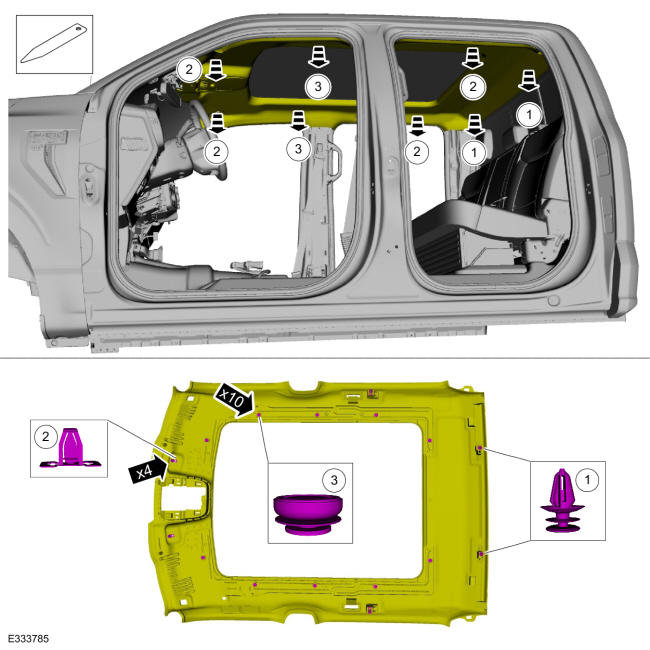

Vehicles With: Panoramic Roof Opening Panel
Lower the headliner.
1. Release the headliner rear clips.
  Use the General Equipment: Interior Trim Remover
2. Release the headliner front and side clips.
  Use the General Equipment: Interior Trim Remover
3. Release the headliner magnets.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

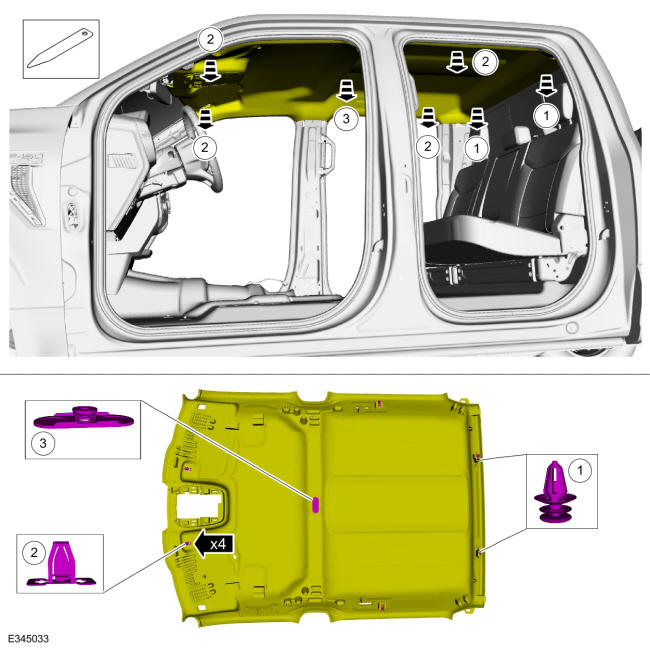

Vehicles Without: Panoramic Roof Opening Panel
Lower the headliner.
1. Release the headliner rear clips.
  Use the General Equipment: Interior Trim Remover
2. Release the headliner front and side clips.
  Use the General Equipment: Interior Trim Remover
3. Release the headliner magnet.
  se the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

All vehicles

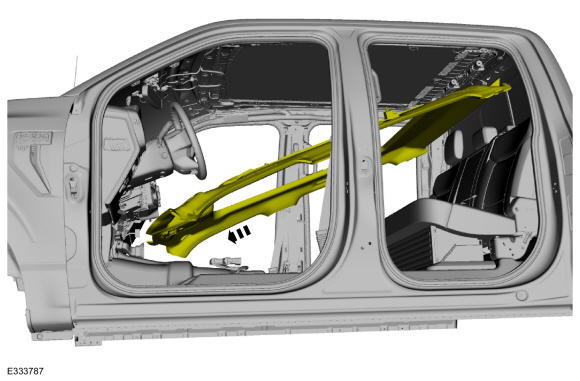

Position the headliner below the steering column.

Courtesy of FORD MOTOR COMPANY
NOTE: The headliner does allow for some minor flexing to fit it out of the passenger front door opening.

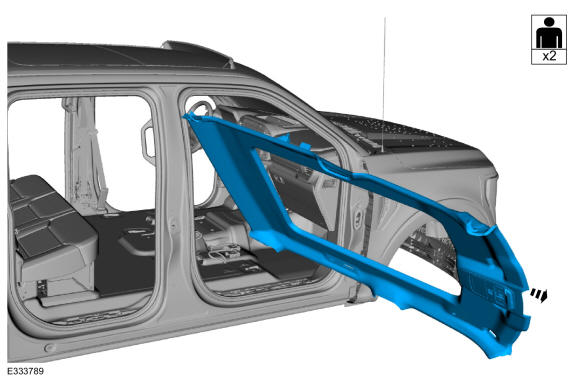

Remove the headliner.

Courtesy of FORD MOTOR COMPANY
