Headliner - SuperCab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items:
1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
2. On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .
NOTE: LH (left hand) side shown in illustration, RH (right hand) side similar.

On both sides. Release the clips and remove the upper striker covers.

Courtesy of FORD MOTOR COMPANY
NOTE: LH (left hand) side shown in illustration, RH (right hand) side similar.

On both sides. Remove the sun visor.
1. Remove the bolt cover.
2. Remove the bolt.
3. Remove the sun visor.
4. If equipped. Disconnect the sun visor electrical connector.
Courtesy of FORD MOTOR COMPANY
On both sides. Remove the bolt and the sun visor clip.

Courtesy of FORD MOTOR COMPANY
On LH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the windshield interior trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Disconnect the headliner wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove and discard the garment hooks.
1. Open the garment hook retainer cover.
2. Remove the screw and the garment hook.
Courtesy of FORD MOTOR COMPANY

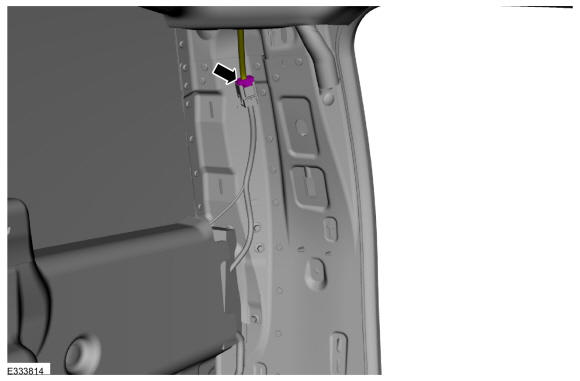

On LH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
On RH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
On both sides. Position front seats in the full forward and the backrests in the fully reclined position.
1. Position the front seats in the full forward position.
2. Position the front seat backreasts in the full reclined position.
Courtesy of FORD MOTOR COMPANY
Lower the headliner.
1. Release the headliner rear clips.
  Use the General Equipment: Interior Trim Remover
2. Release the side and front clips.
  Use the General Equipment: Interior Trim Remover
3. Release the headliner magnet.
  Use the General Equipment: Interior Trim Remover
Courtesy of FORD MOTOR COMPANY

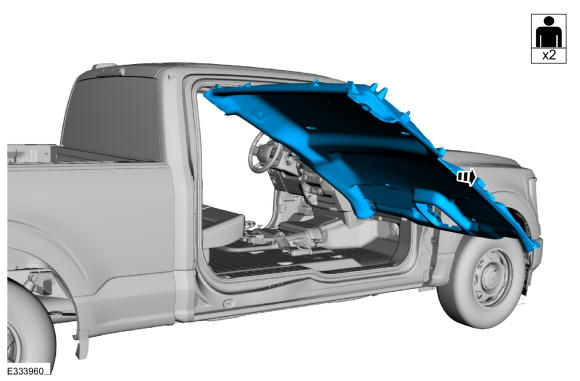

NOTE: Seats removed for clarity.

Remove the headliner.

Courtesy of FORD MOTOR COMPANY
