Headliner - Regular Cab: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items:
1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
2. On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .
NOTE: LH (left hand) side shown, RH (right hand) side similar.

On both sides. Remove the sun visor.
1. Remove the bolt cover.
2. Remove the bolt.
3. Remove the sun visor.
4. If equipped. Disconnect the sun visor electrical connector.
Courtesy of FORD MOTOR COMPANY
On both sides. Remove the bolt and the sun visor clip.

Courtesy of FORD MOTOR COMPANY
On LH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the windshield interior trim panel.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Disconnect the headliner wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
On both sides. Remove and discard the garment hooks.
1. Open the garment hook retainer cover.
2. Remove the screw and the garment hook.
Courtesy of FORD MOTOR COMPANY

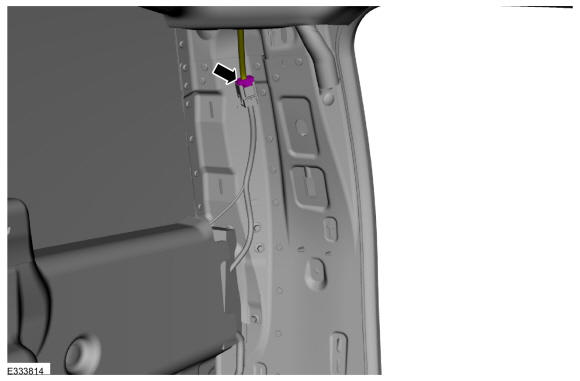

On LH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
On RH side. Disconnect the headliner wiring harness electrical connector.

Courtesy of FORD MOTOR COMPANY
Release the rear clips and lower the headliner.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

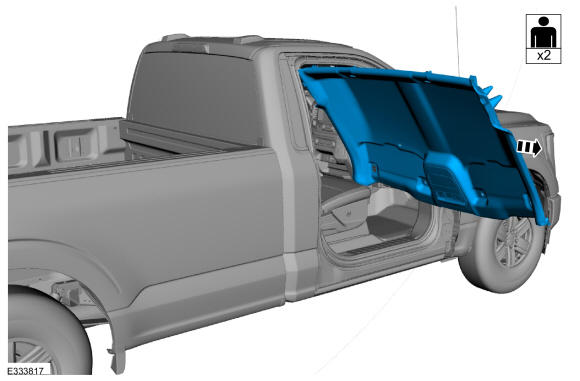

Remove the headliner.

Courtesy of FORD MOTOR COMPANY
