Headliner - Lowering - SuperCab

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

Interior Trim Remover
  1. Remove the following items:

    1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
    2. On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - SuperCab .

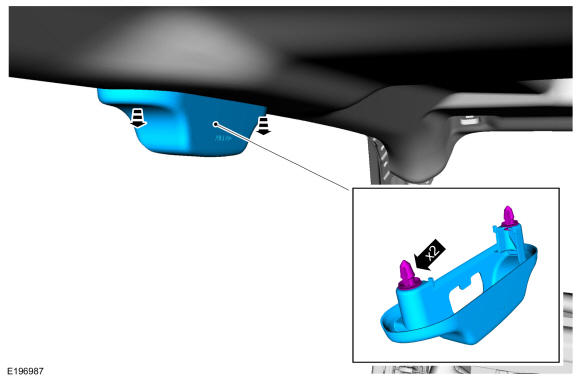

  2. NOTE: LH (left hand) side shown in illustration, RH (right hand) side similar.

    On both sides. Release the clips and remove the upper striker covers.

    GFD561458Courtesy of FORD MOTOR COMPANY
  3. NOTE: LH (left hand) side shown in illustration, RH (right hand) side similar.

    On both sides. Remove the sun visor.

    1. Remove the bolt cover.
    2. Remove the bolt.
    3. Remove the sun visor.
    4. If equipped. Disconnect the sun visor electrical connector.

    GFD561448Courtesy of FORD MOTOR COMPANY
  4. On both sides. Remove the bolt and the sun visor clip.
    GFD561449Courtesy of FORD MOTOR COMPANY
  5. On LH side. Disconnect the headliner wiring harness electrical connector.
    GFD561450Courtesy of FORD MOTOR COMPANY
  6. Release the clips and remove the windshield interior trim panel.

    Use the General Equipment: Interior Trim Remover

    GFD561451Courtesy of FORD MOTOR COMPANY
  7. Disconnect the headliner wiring harness electrical connectors.
    GFD561452Courtesy of FORD MOTOR COMPANY

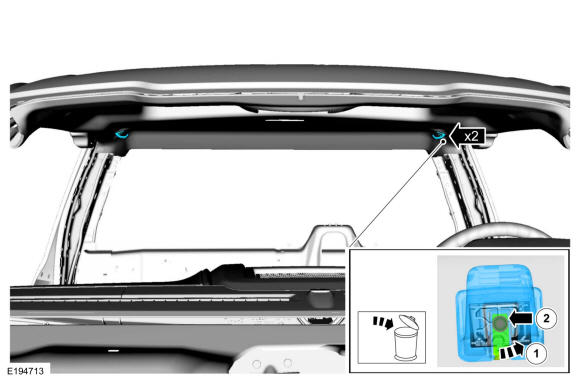

  8. On both sides. Remove and discard the garment hooks.

    1. Open the garment hook retainer cover.
    2. Remove the screw and the garment hook.

    GFD561459Courtesy of FORD MOTOR COMPANY

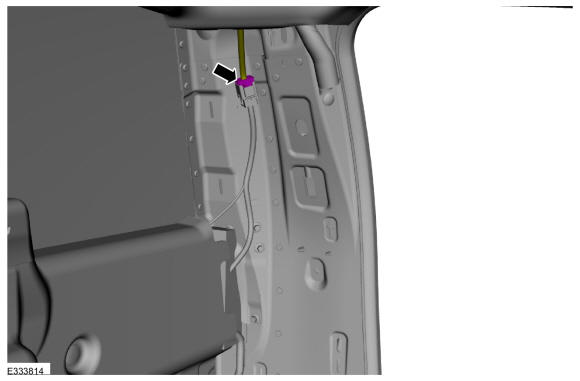

  9. On LH side. Disconnect the headliner wiring harness electrical connector.
    GFD561473Courtesy of FORD MOTOR COMPANY
  10. On RH side. Disconnect the headliner wiring harness electrical connector.
    GFD561455Courtesy of FORD MOTOR COMPANY

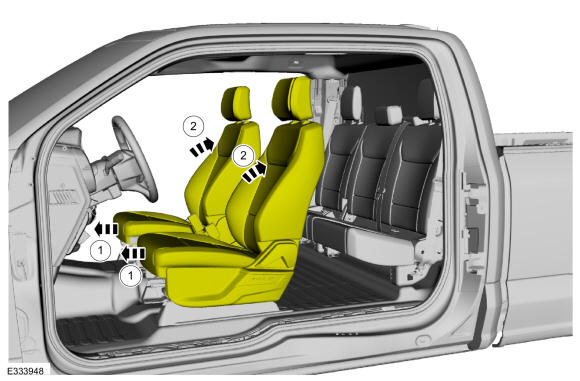

  11. On both sides. Position front seats in the full forward and the backrests in the fully reclined position.

    1. Position the front seats in the full forward position.
    2. Position the front seat backreasts in the full reclined position.

    GFD561461Courtesy of FORD MOTOR COMPANY

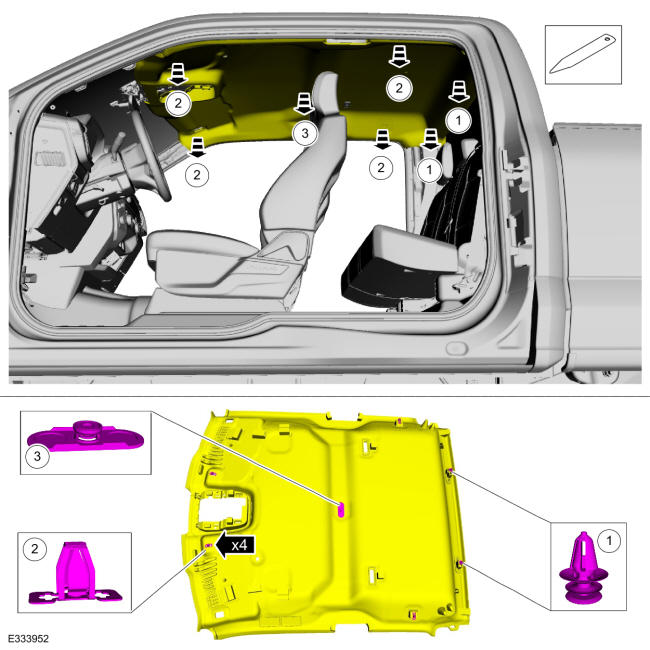

  12. Lower the headliner.

    1. Release the headliner rear clips.

      Use the General Equipment: Interior Trim Remover

    2. Release the side and front clips.

      Use the General Equipment: Interior Trim Remover

    3. Release the headliner magnet.

      Use the General Equipment: Interior Trim Remover

GFD561462Courtesy of FORD MOTOR COMPANY
