Headliner - Lowering - Regular Cab

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .

Special Tool(s) / General Equipment

1. Remove the following items:
   1. On both sides. Remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
   2. On both sides. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel - Regular Cab .

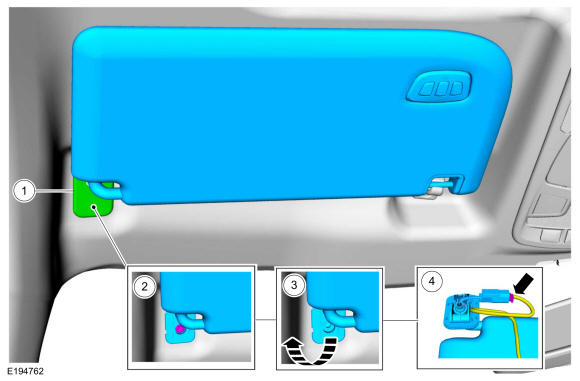

2. NOTE: LH (left hand) side shown in illustration, RH (right hand) side similar.

   On both sides. Remove the sun visor.

   1. Remove the bolt cover.
   2. Remove the bolt.
   3. Remove the sun visor.
   4. If equipped. Disconnect the sun visor electrical connector.

   Courtesy of FORD MOTOR COMPANY

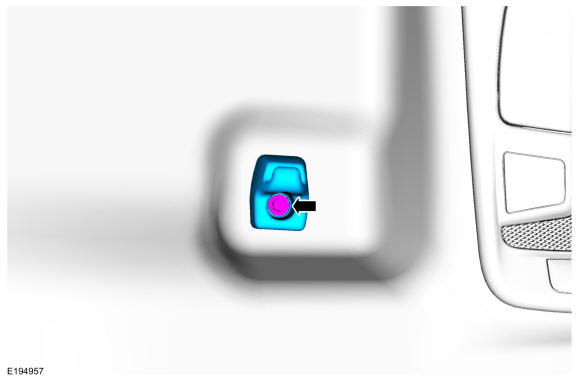

3. On both sides. Remove the bolt and the sun visor clip.

   Courtesy of FORD MOTOR COMPANY

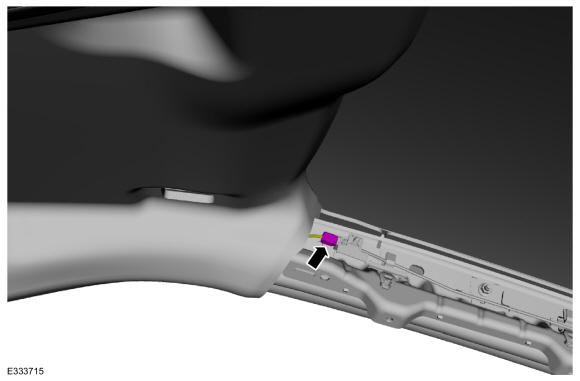

4. On LH side. Disconnect the headliner wiring harness electrical connector.

   Courtesy of FORD MOTOR COMPANY

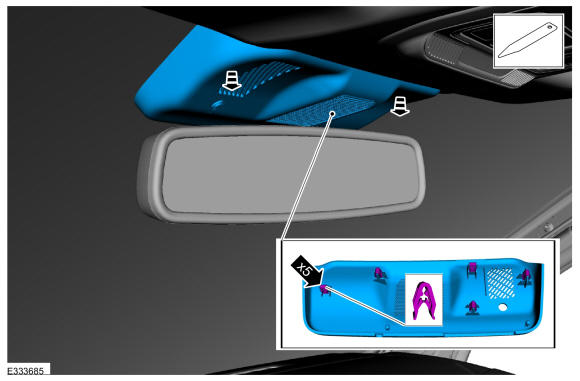

5. Release the clips and remove the windshield interior trim panel.

   Use the General Equipment: Interior Trim Remover

   Courtesy of FORD MOTOR COMPANY

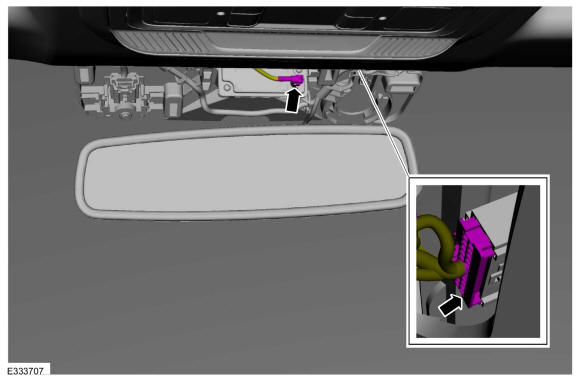

6. Disconnect the headliner wiring harness electrical connectors.

   Courtesy of FORD MOTOR COMPANY

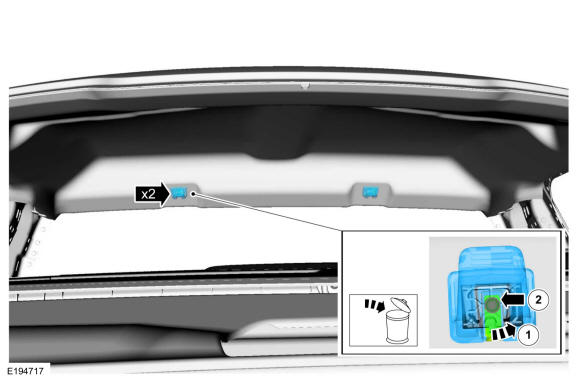

7. On both sides. Remove and discard the garment hooks.
   1. Open the garment hook retainer cover.
   2. Remove the screw and the garment hook.

   Courtesy of FORD MOTOR COMPANY

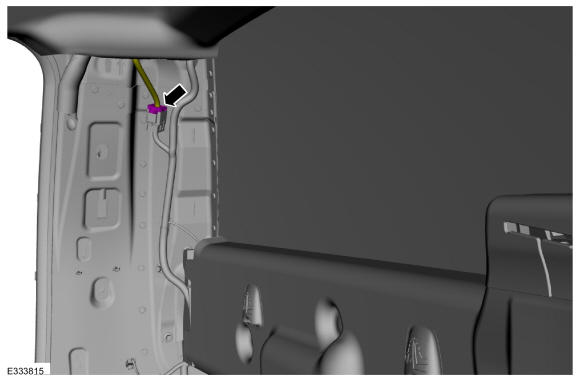

8. On LH side. Disconnect the headliner wiring harness electrical connector.

   Courtesy of FORD MOTOR COMPANY

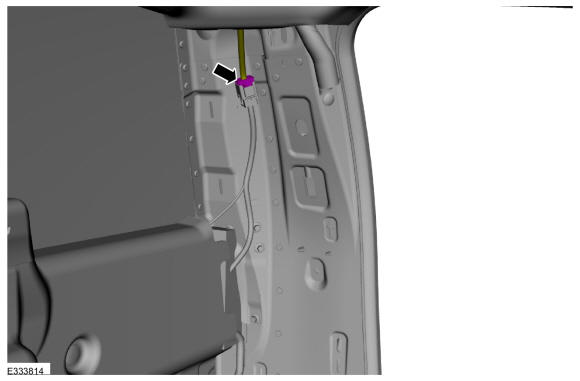

9. On RH side. Disconnect the headliner wiring harness electrical connector.

   Courtesy of FORD MOTOR COMPANY

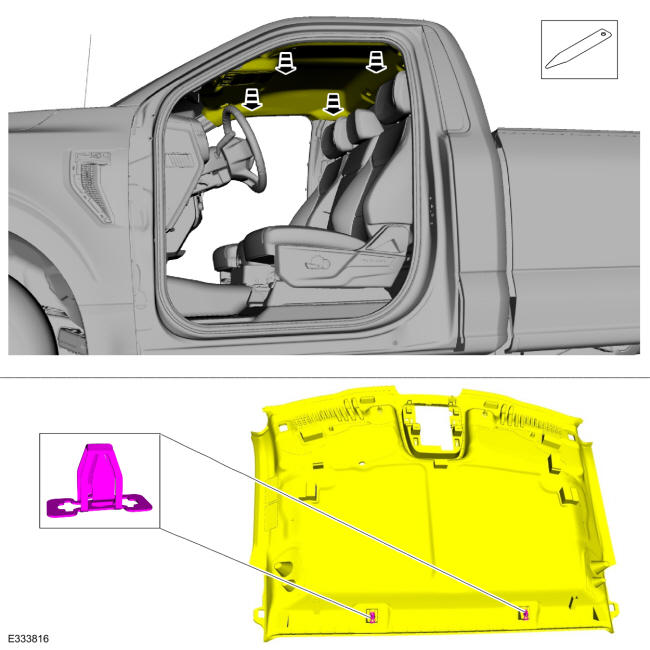

10. Release the rear clips and lower the headliner.

    Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
