Front Scuff Plate Trim Panel - Regular Cab/SuperCrew: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH (left hand) side shown, RH (right hand) side similar.
  1. Remove the front scuff plate trim panel.

    1. Release the front scuff plate trim panel clips.

      Use the General Equipment: Interior Trim Remover

    2. If equipped. Disconnect the front scuff plate trim panel electrical connector.

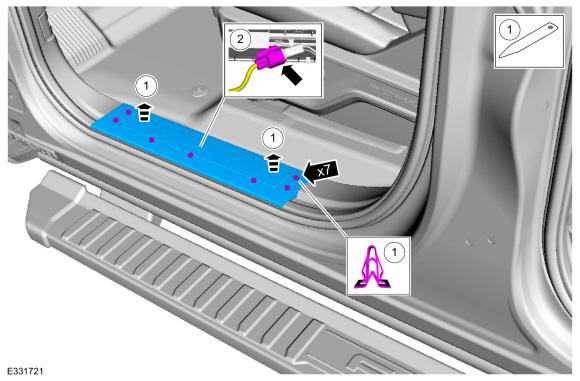

GFD561446Courtesy of FORD MOTOR COMPANY
