C-Pillar Trim Panel: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.
To install, reverse the removal procedure.

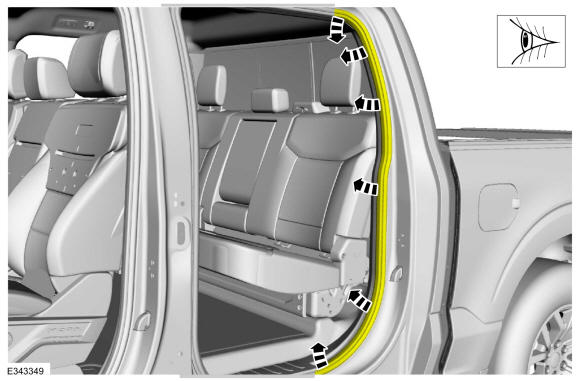

- Inspect and position the rear door weather strip lip so that it overlaps the top of the C-pillar trim panel.
- Check the seatbelt system for correct operation. Refer to: Seatbelt System Functional Tests .
