B-Pillar Trim Panel - Regular Cab: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH (left hand) side shown in illustration, RH (right hand) side similar.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Seats removed for clarity.
Upper and Lower B-Pillar Trim Panels
- Position the front seat aside.
- Position the front seat in the full forward position.
- Position the front seat backrest in the full forward position.
- Remove the front scuff plate trim panel. Refer to: Front Scuff Plate Trim Panel - Regular Cab/SuperCrew .

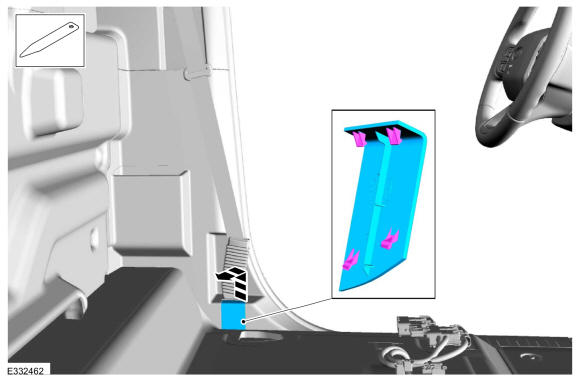

- Release the tabs and remove the front seatbelt retractor and pretensioner opening trim cover.
Use the General Equipment: Interior Trim Remover

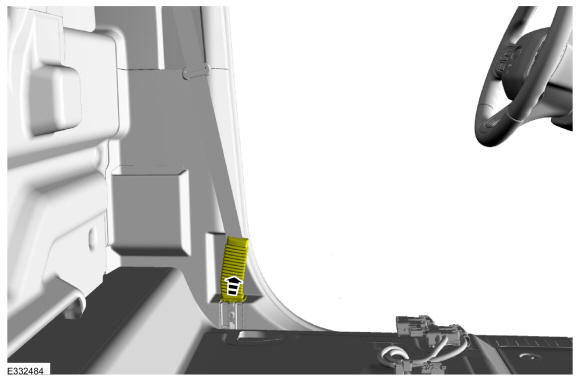

- Release the front seatbelt retractor and pretensioner boot from the lower B-pillar trim panel and position upward on the seatbelt.

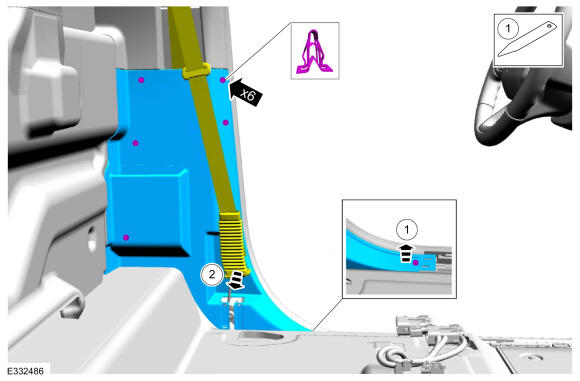

- Remove the lower B-pillar trim panel.
- Release the lower B-pillar trim panel clips.
Use the General Equipment: Interior Trim Remover
- Position the front seatbelt retractor and pretensioner through the opening in the lower B-pillar trim panel.
Upper B-Pillar Trim Panel
- Release the lower B-pillar trim panel clips.

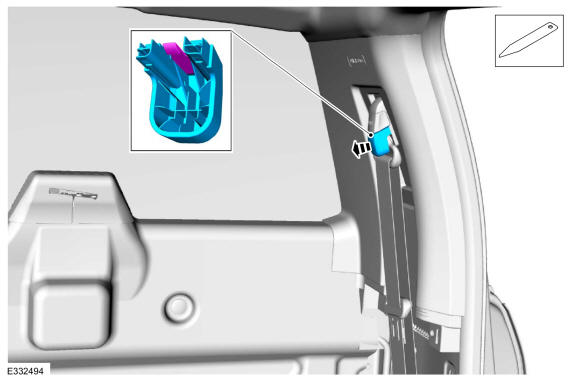

- Release the tab and remove the D-ring trim cover.
Use the General Equipment: Interior Trim Remover

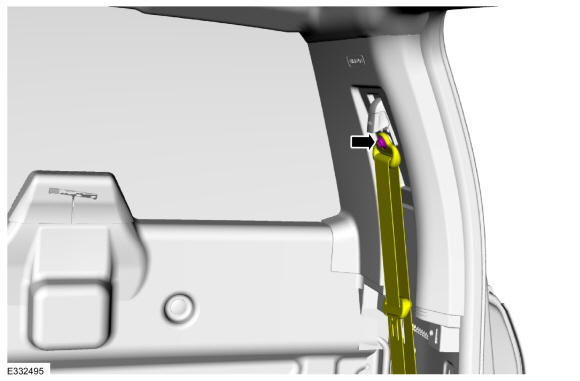

- Remove the D-ring bolt and position the front seatbelt retractor and pretensioner aside.
Torque
: 30 lb.ft (40 Nm)

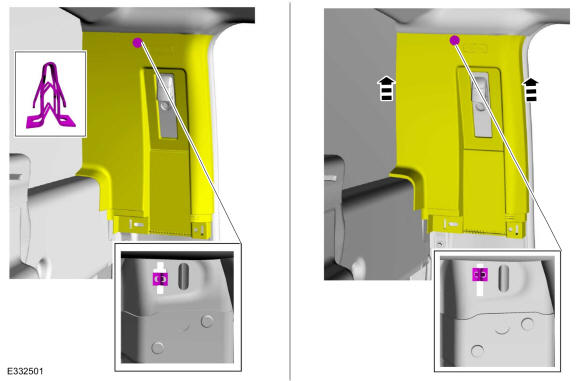

- Release the upper B-pillar trim panel clips.
Use the General Equipment: Interior Trim Remover
-
NOTE: The upper B-pillar trim panel must be positioned upward to allow the upper clip to release correctly. Failure to follow this direction may cause damage to the upper B-pillar trim panel.
Slide the upper B-pillar trim panel up, aligning the clip to the slot in the sheet metal.

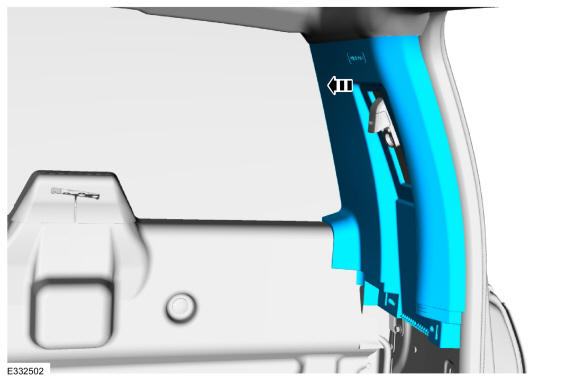

- Remove the upper B-pillar trim panel.
