A-Pillar Trim Panel: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH (left hand) shown in illustration, RH (right hand) similar.

NOTE: Removal steps in this procedure may contain installation details.

Release the tabs and remove the assist handle cover.
Use the General Equipment: Pick Hook

Courtesy of FORD MOTOR COMPANY

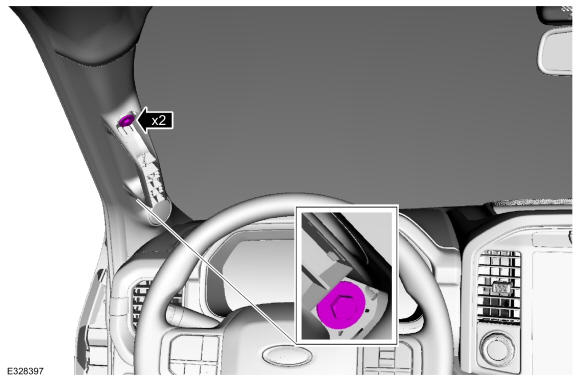

Remove the assist handle bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

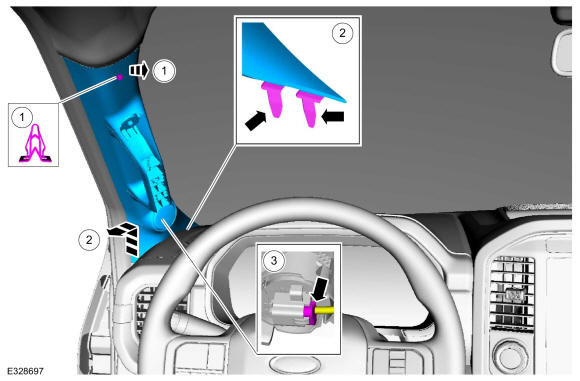

Remove the A-pillar trim panel.
1. Release the A-pillar trim panel clip.
2. Lift upward and outward to disengage the A-pillar trim panel lower tabs.
3. If equipped. Disconnect the front tweeter speaker electrical connector.

Courtesy of FORD MOTOR COMPANY
