Steering Column Upper Shaft: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

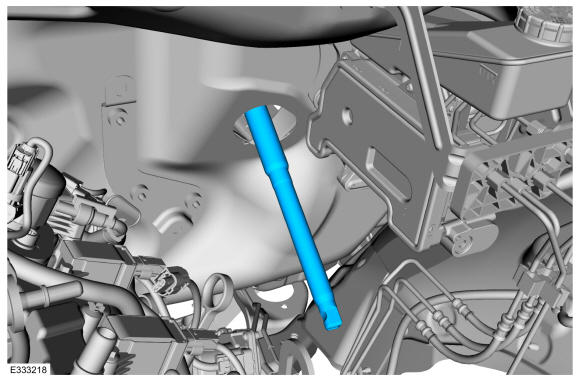

Install the steering column upper shaft.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Disconnect the steering column upper shaft from the steering column.

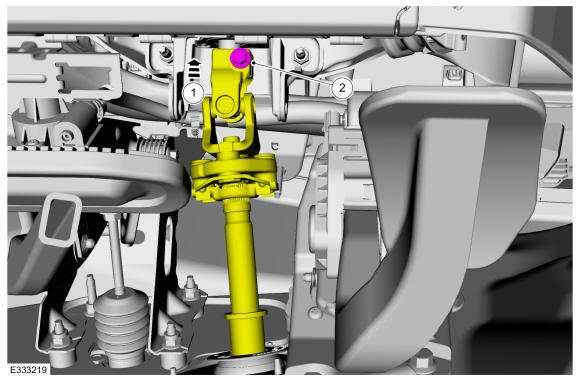

1. Connect the steering column upper shaft to the steering column.
2. Install the new bolt.
  Torque

  : 22 lb.ft (30 Nm)
Courtesy of FORD MOTOR COMPANY

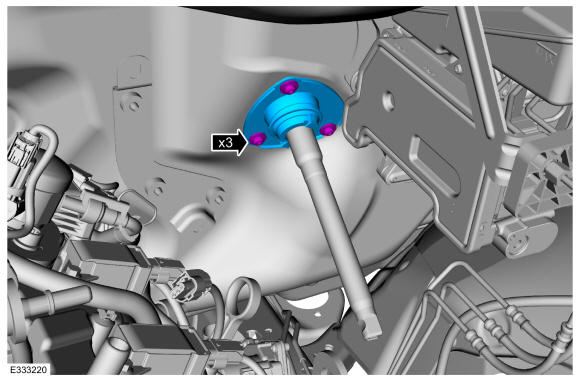

Install the steering column opening seal and install the new retainers.
Torque

: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Disconnect the steering column upper shaft from the steering column lower shaft.

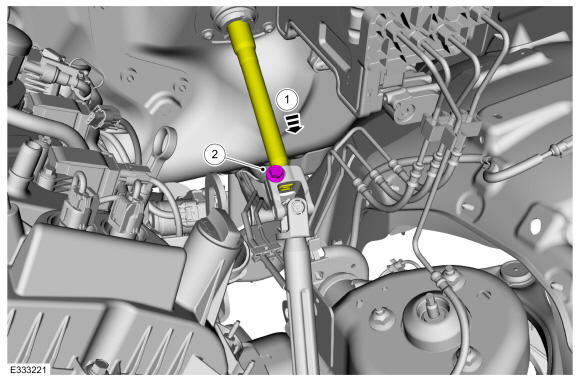

1. Connect the steering column upper shaft to the steering column lower shaft.
2. Install the new bolt.
  Torque

  : 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
