Steering Column Tilt Motor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the steering column. Refer to: Steering Column .

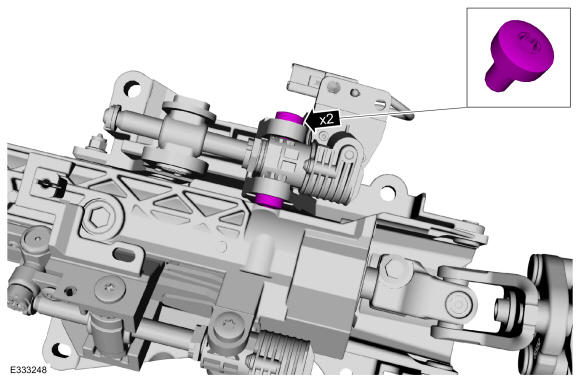

- Remove the tilt motor retainers.
Torque
: 62 lb.in (7 Nm)

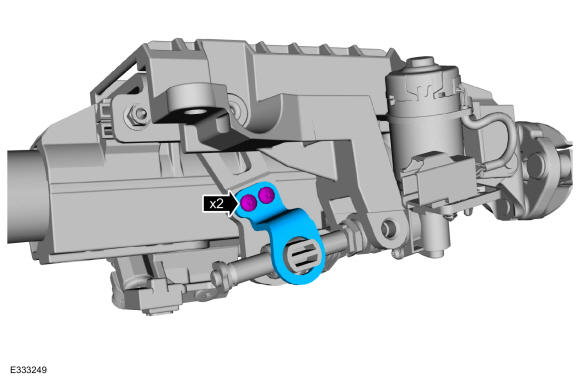

- Remove the retainers and the trunnion nut capture bracket.
Torque
: 62 lb.in (7 Nm)

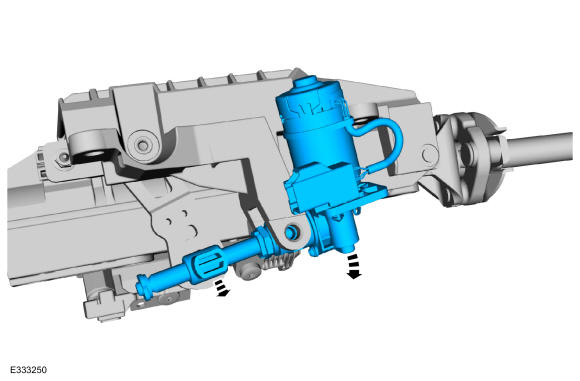

- Remove the tilt motor.
