Steering Column Telescopic Motor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column. Refer to: Steering Column .

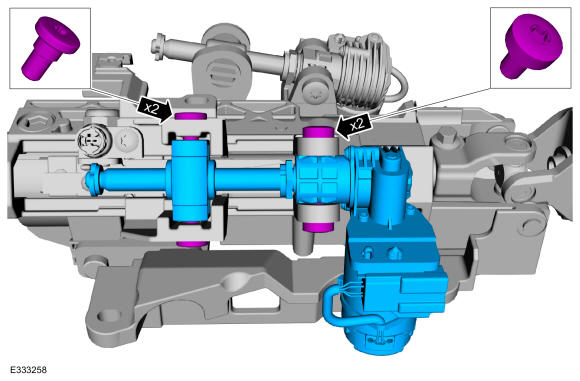

  2. Remove the telescopic motor retainers and the telescopic motor.

    Torque

    : 62 lb.in (7 Nm)

GFD552316Courtesy of FORD MOTOR COMPANY
