Removal And Installation: Battery: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped, vehicles with an auxiliary battery(ies) must be disconnected in addition to the main 12 volt battery to remove the 12 voltage from the vehicle or vehicle damage may occur.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the battery. Refer to: Battery Disconnect and Connect .

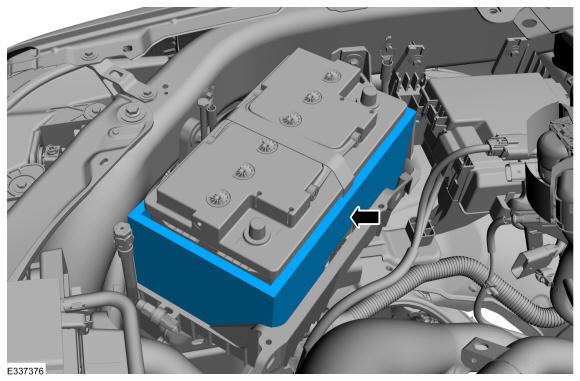

Remove the battery heat shield.

Courtesy of FORD MOTOR COMPANY

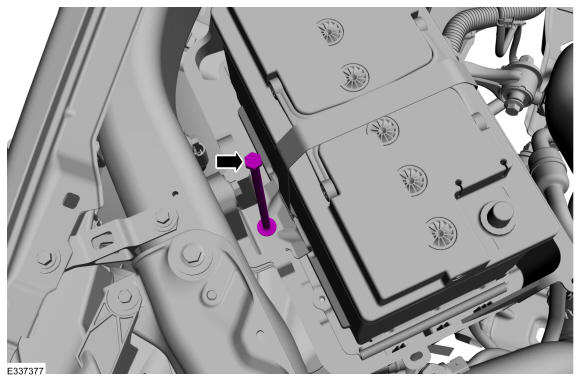

Fully loosen and remove the battery hold-down bolt.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

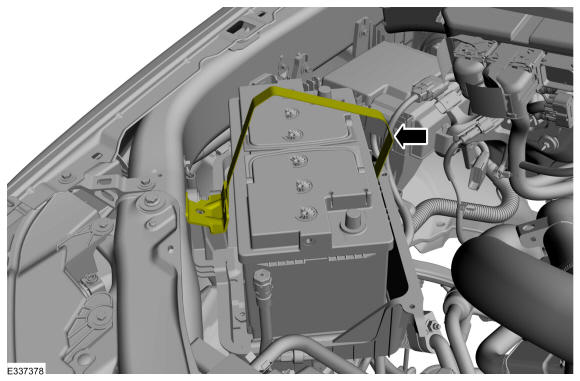

Position aside the strap.

Courtesy of FORD MOTOR COMPANY

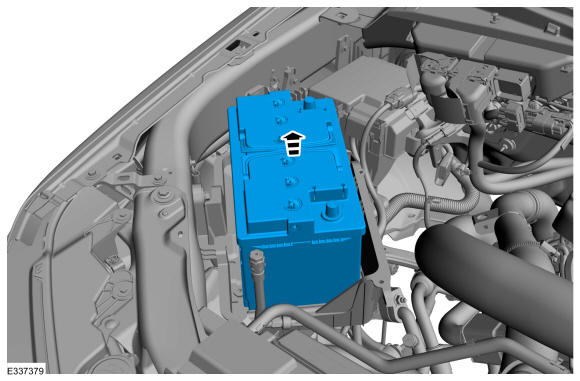

Remove the battery.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
