Battery Tray: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Remove the battery. Refer to: Battery .
Non-Hybrid Vehicles

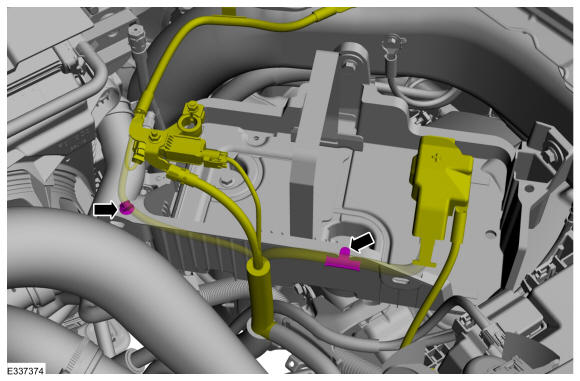

Detach the battery cable retainers from the battery tray.

Courtesy of FORD MOTOR COMPANY

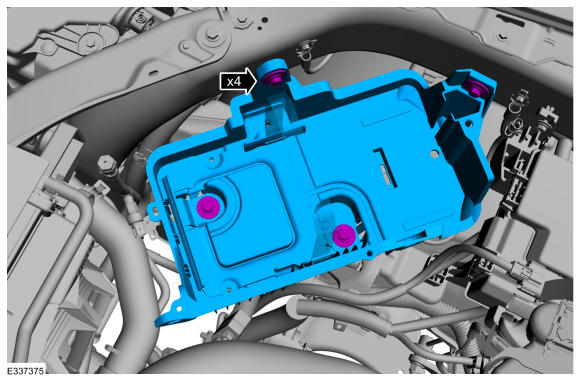

Remove the bolts and the battery tray.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

Hybrid Vehicles
Remove the auxiliary battery isolator. Refer to: Auxiliary Battery Isolator .

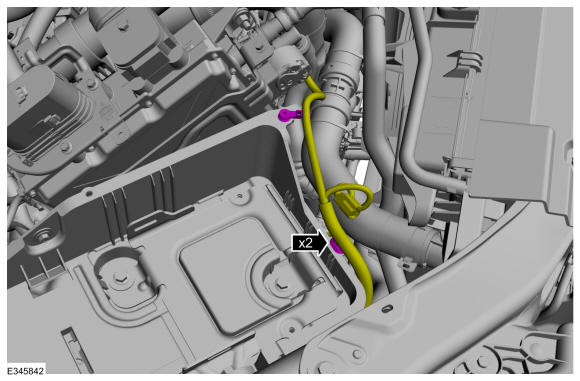

Detach the battery cable retainers from the battery tray.

Courtesy of FORD MOTOR COMPANY

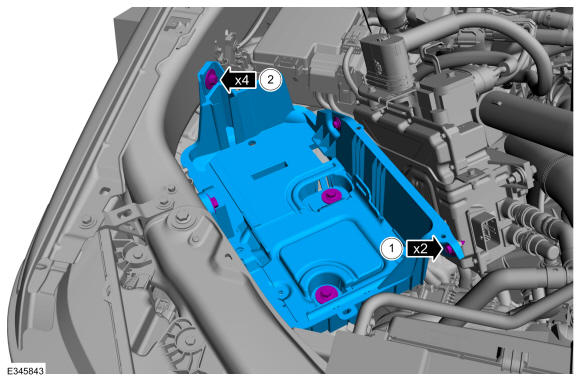

1. Remove the screws.
  Torque

  : 93 lb.in (10.5 Nm)
2. Remove the bolts and the battery tray.
  Torque

  : 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
