Battery Cables - 3.5L EcoBoost (BM): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the battery. Refer to: Battery Disconnect and Connect .

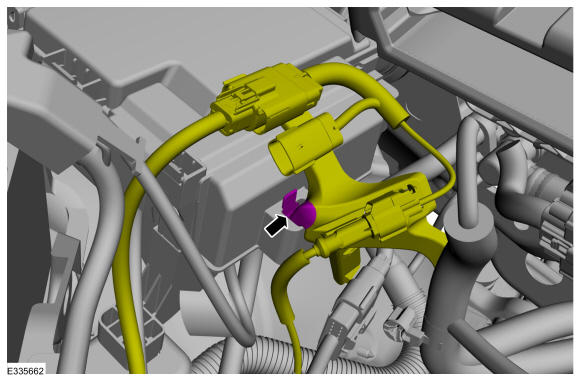

Detach the wire harness bracket.

Courtesy of FORD MOTOR COMPANY

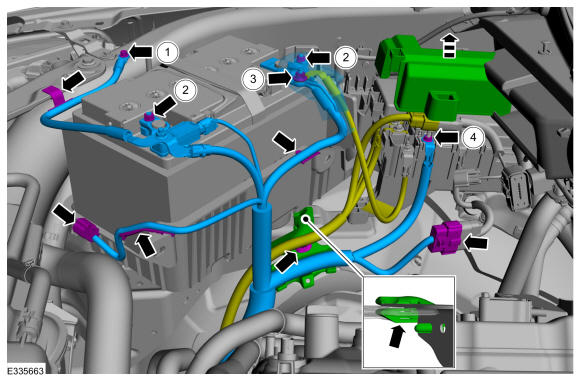

Vehicles without dual generators
1. Torque
  : 80 lb.in (9 Nm)
2. Torque
  : 55 lb.in (6.2 Nm)
3. Torque
  : 80 lb.in (9 Nm)
4. Torque
  : 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles with dual generators
1. Torque
  : 80 lb.in (9 Nm)
2. Torque
  : 55 lb.in (6.2 Nm)
3. Torque
  : 80 lb.in (9 Nm)
4. Torque
  : 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles
1. Torque
  : 177 lb.in (20 Nm)
2. Torque
  : 177 lb.in (20 Nm)
Courtesy of FORD MOTOR COMPANY

Vehicles without dual generators
1. Torque
  : 35 lb.ft (48 Nm)
2. Torque
  : 55 lb.in (6.2 Nm)
3. Torque
  : 106 lb.in (12 Nm)
4. Torque
  : 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY

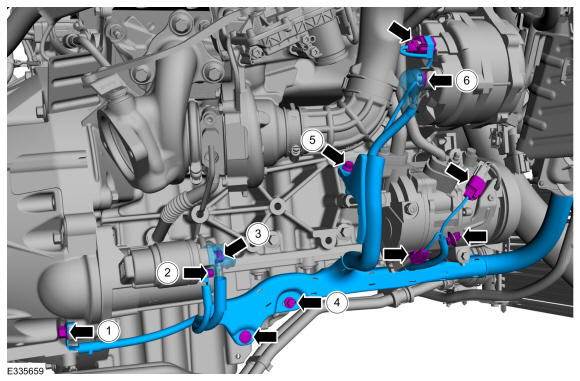

Vehicles with dual generators
1. Torque
  : 35 lb.ft (48 Nm)
2. Torque
  : 55 lb.in (6.2 Nm)
3. Torque
  : 106 lb.in (12 Nm)
4. Torque
  : 106 lb.in (12 Nm)
5. Torque
  : 177 lb.in (20 Nm)
6. Torque
  : 155 lb.in (17.5 Nm)
Courtesy of FORD MOTOR COMPANY

All vehicles
Torque
: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Torque
: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
