Auxiliary Battery: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If equipped, vehicles with an auxiliary battery(ies) must be disconnected in addition to the main 12 volt battery to remove the 12 voltage from the vehicle or vehicle damage may occur.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

Disconnect the batteries. Refer to: Battery Disconnect and Connect .
Hybrid Vehicles with auxiliary battery
Courtesy of FORD MOTOR COMPANY

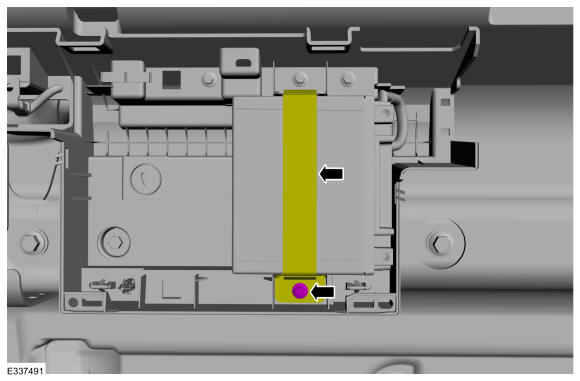

1. Remove the bolt and position the hold-down strap aside.
  Torque

  : 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

Non-Hybrid vehicles with auxiliary batteries with a 110-120v 2kw to 2.4kw pickup bed power outlet

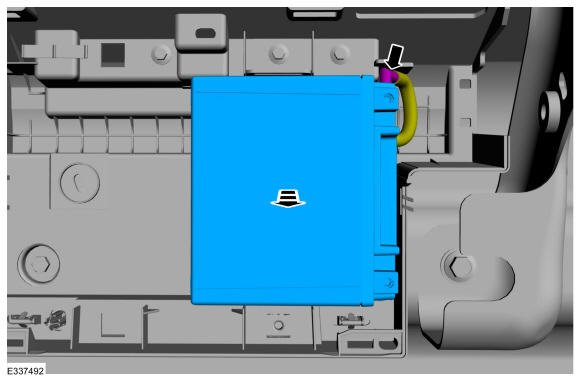

1. Disconnect the vent hose and remove the auxiliary battery.

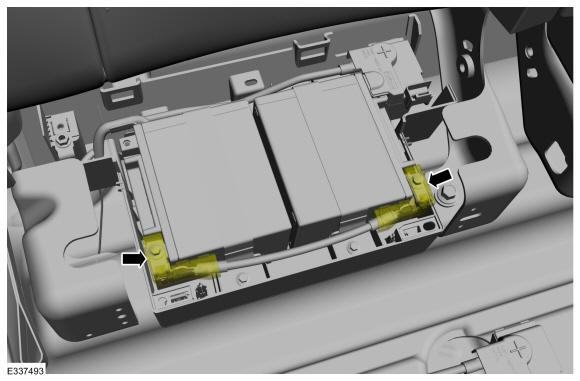

Position the terminal covers aside.

Courtesy of FORD MOTOR COMPANY

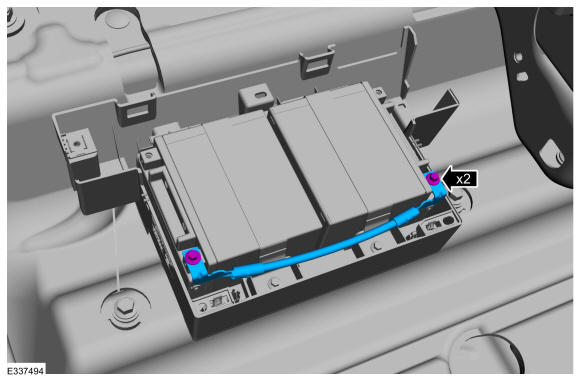

Remove the bolts and the auxiliary battery cable.
Torque

: 55 lb.in (6.2 Nm)

Courtesy of FORD MOTOR COMPANY

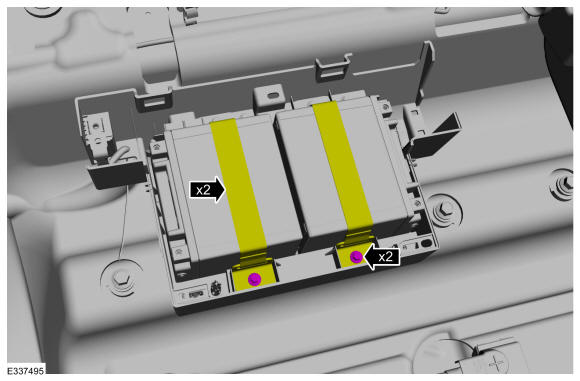

Remove the bolts and position the hold-down straps aside.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

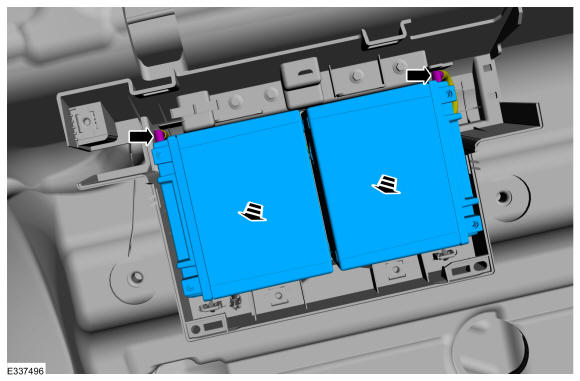

Disconnect the vent hose and remove the auxiliary batteries.

Courtesy of FORD MOTOR COMPANY
