Auxiliary Battery Isolator: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Disconnect the batteries. Refer to: Battery Disconnect and Connect .

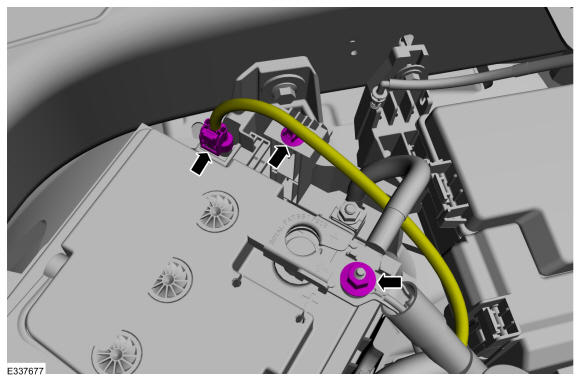

- Disconnect the electrical connector and position the cable aside from the battery isolator.
- Remove the battery isolator cable nut.
  Torque

  : 80 lb.in (9 Nm)
Courtesy of FORD MOTOR COMPANY

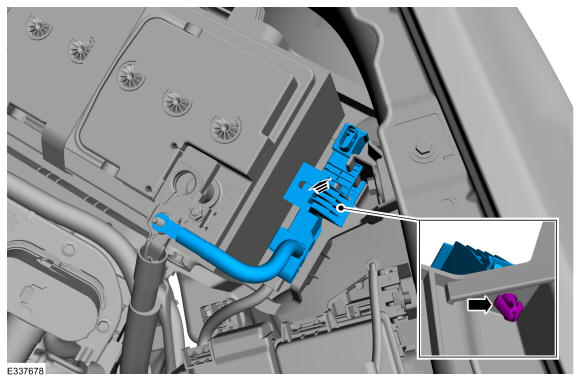

Release the retainer and remove the battery isolator.

Courtesy of FORD MOTOR COMPANY
