Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

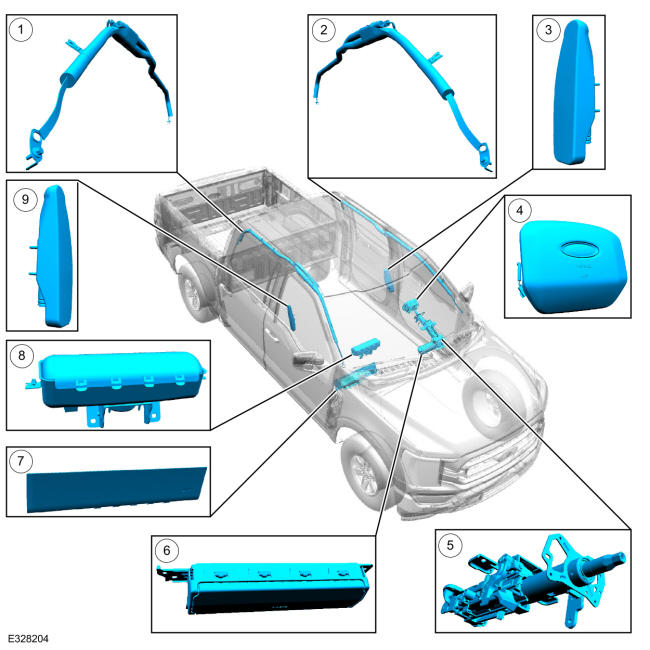

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Passenger side curtain airbag |
| 2 |
Driver side curtain airbag |
| 3 |
Driver side airbag |
| 4 |
Driver airbag |
| 5 |
Adaptive energy absorption steering column |
| 6 |
Driver knee airbag |
| 7 |
Passenger knee airbag |
| 8 |
Passenger airbag (includes canister vent) |
| 9 |
Passenger side airbag |
 Courtesy of FORD MOTOR COMPANY
|

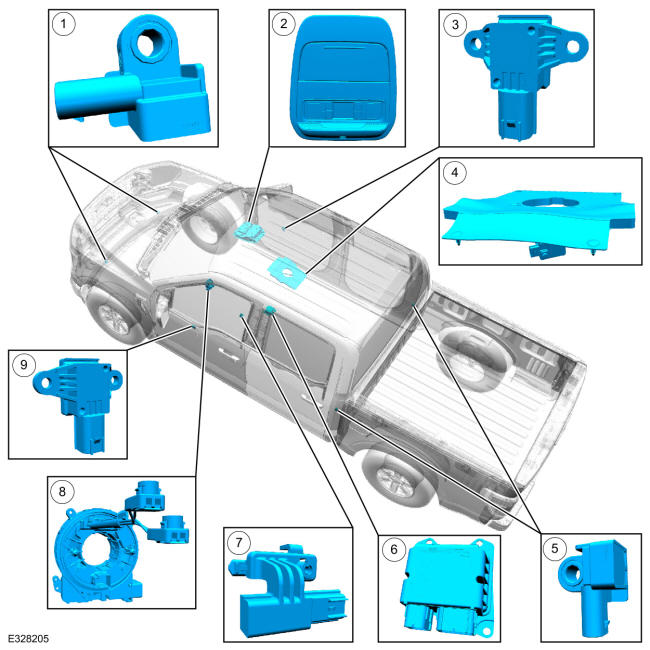

| Item |
Description |
| 1 |
Driver and passenger front impact severity sensors |
| 2 |
Overhead console (includes PAD indicator) |
| 3 |
Passenger front door side impact sensor |
| 4 |
OCSM (includes OCS sensor and gel-filled bladder) |
| 5 |
Driver and passenger B-pillar side impact sensors (SuperCab) / driver and passenger C-pillar side impact sensors (SuperCrew) |
| 6 |
RCM |
| 7 |
Driver seat position sensor |
| 8 |
Clockspring |
| 9 |
Driver front door side impact sensor |

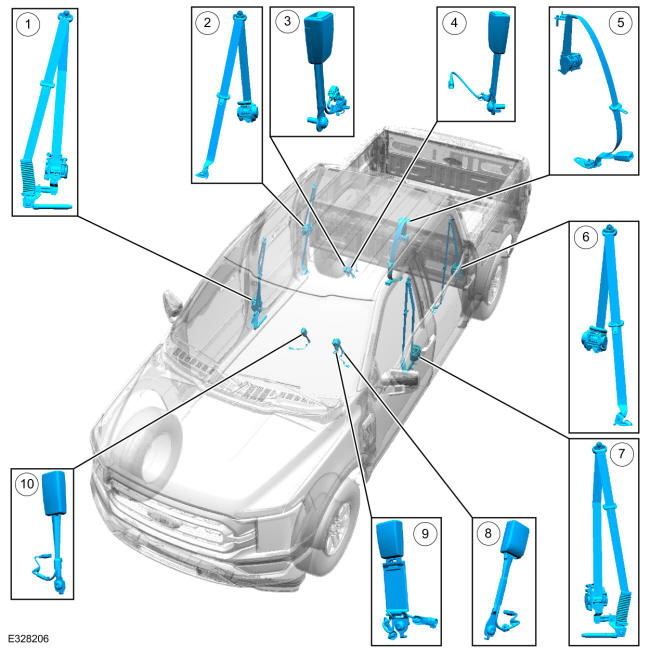

 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front passenger seatbelt retractor and pretensioner (includes retractor load limiter and anchor pretensioner) (SuperCrew shown in illustration, other body styles similar) |
| 2 |
Passenger rear outer seatbelt retractor and pretensioner (SuperCrew shown in illustration, SuperCab similar) |
| 3 |
Passenger rear outer seatbelt buckle assembly (includes seatbelt buckle switch) (SuperCrew shown in illustration, SuperCab similar) |
| 4 |
Rear center seatbelt buckle assembly (includes seatbelt buckle switch) (SuperCrew shown in illustration, SuperCab similar) |
| 5 |
Driver rear seatbelt buckle (includes seatbelt buckle switch) (part of the rear center seatbelt retractor) (SuperCrew shown in illustration, SuperCab similar) |
| 6 |
Driver rear outer seatbelt retractor and pretensioner (SuperCrew shown in illustration, SuperCab similar) |
| 7 |
Driver seatbelt retractor and pretensioner (includes retractor load limiter and anchor pretensioner) (SuperCrew shown in illustration, other body styles similar) |
| 8 |
Driver seatbelt buckle (includes seatbelt buckle switch) |
| 9 |
Front center seatbelt buckle (includes seatbelt buckle switch) (if equipped) |
| 10 |
Front passenger seatbelt buckle (includes seatbelt buckle switch and Belt Tension Sensor [BTS]) |
