Parking Aid - Component Location
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

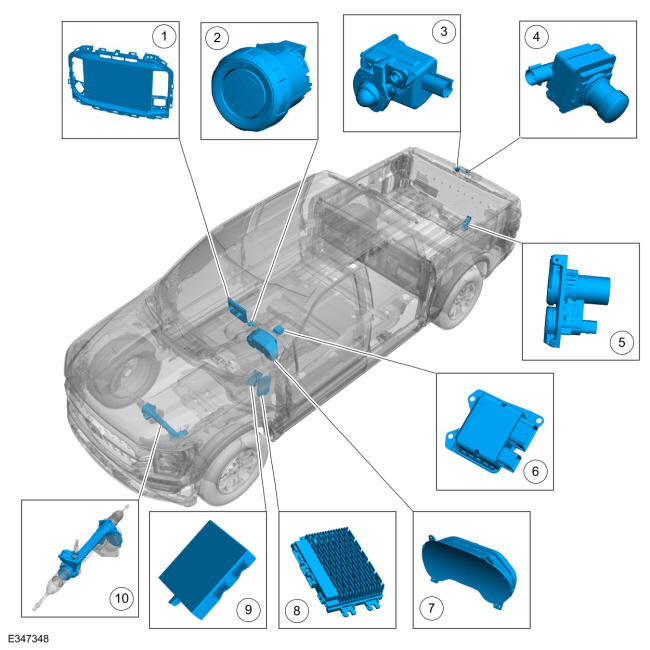

Component Location - Pro Trailer Backup Assist™
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Audio system display |
| 2 |
PTBA control knob |
| 3 |
Trailer lamp |
| 4 |
Rear parking aid camera |
| 5 |
7/12 pin trailer connector |
| 6 |
RCM |
| 7 |
IPC |
| 8 |
IPMA |
| 9 |
TRM |
| 10 |
PSCM |
| Trailer yaw rate sensor (not shown in illustration, mounts to a trailer) |
