Rear Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

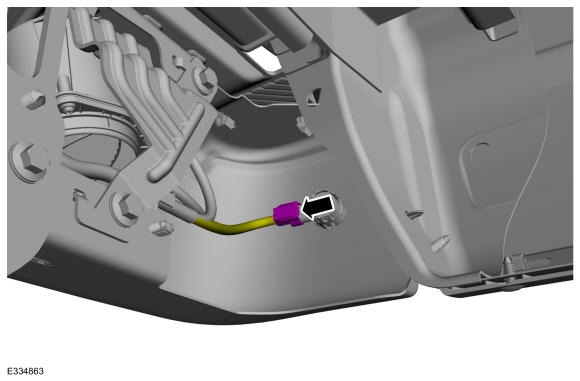

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

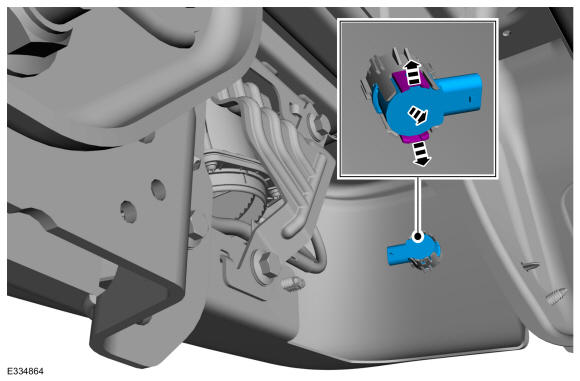

Remove the active park assist sensor.
1. Release the tabs.
2. Remove the sensor.

Courtesy of FORD MOTOR COMPANY
