Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown in illustration, RH side similar.

Remove the front wheel and tire. Refer to: Wheel and Tire .

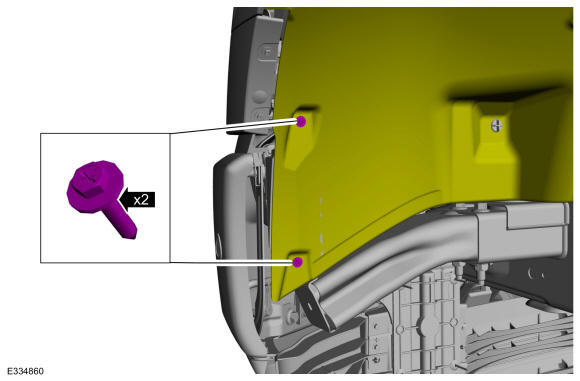

Remove the screws and position aside the front wheel arch liner
Torque

: 15 lb.in (1.7 Nm)

Courtesy of FORD MOTOR COMPANY

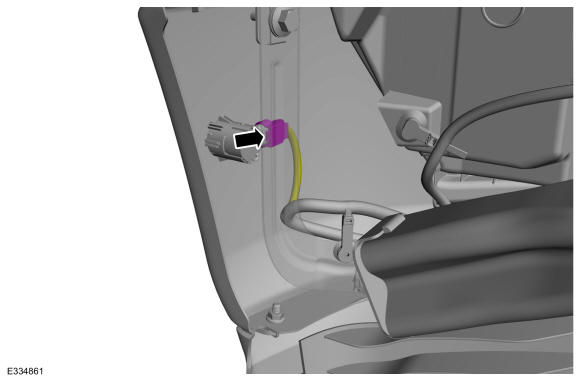

Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

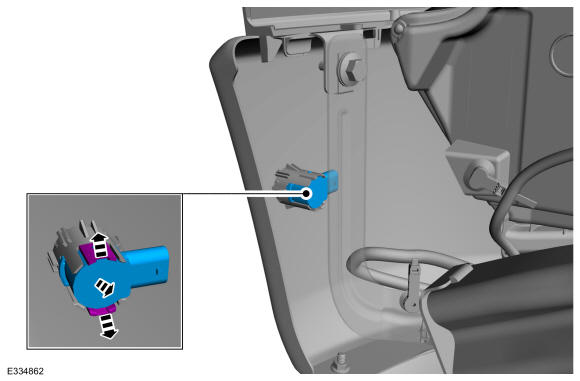

Remove the active park assist sensor.
- Release the tabs.
- Remove the active park assist sensor.

Courtesy of FORD MOTOR COMPANY
