Ignition Switch - Vehicles With: Keyless Entry and Push Button Start: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

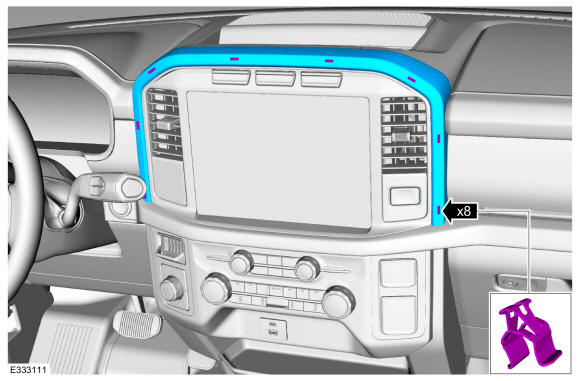

- Release the clips and remove the upper finish trim panel.

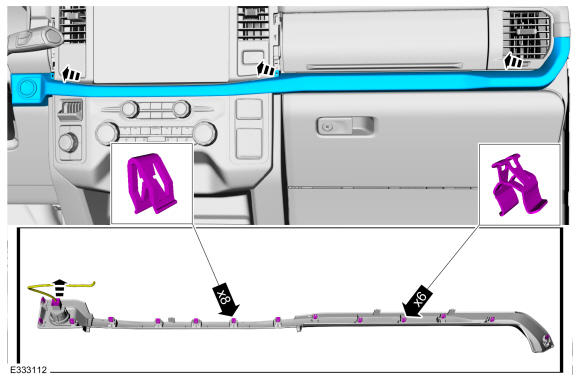

- Release the clips and remove the center finish trim panel.
- Disconnect the ignition switch electrical connector.
- Remove the start/stop switch

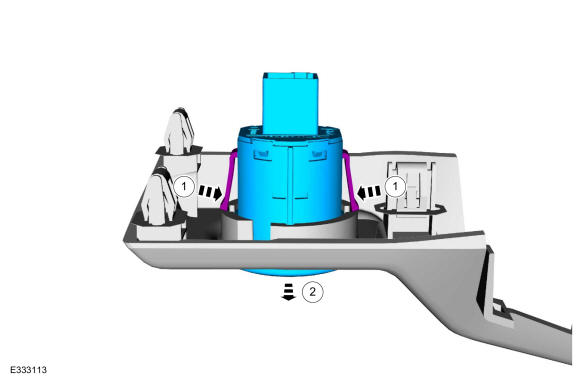

- Release the ignition switch tabs.
- Push the ignition switch out of the steering column opening trim panel.
