Ignition Switch - Vehicles With: Keyed Ignition: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the steering column opening lower trim panel.
1. Unclip and lower the steering column opening lower trim panel.
2. Remove the retainers and the steering column opening lower trim panel.
Courtesy of FORD MOTOR COMPANY
Remove the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

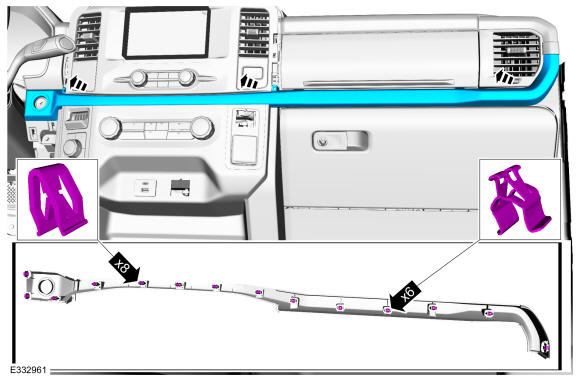

Release the clips and remove the upper finish trim panel.

Courtesy of FORD MOTOR COMPANY

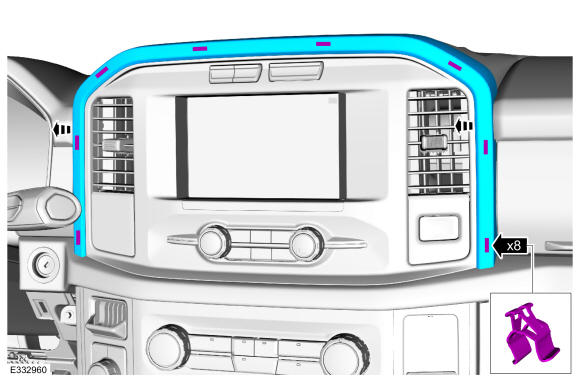

Release the clips and remove the center finish trim panel.

Courtesy of FORD MOTOR COMPANY

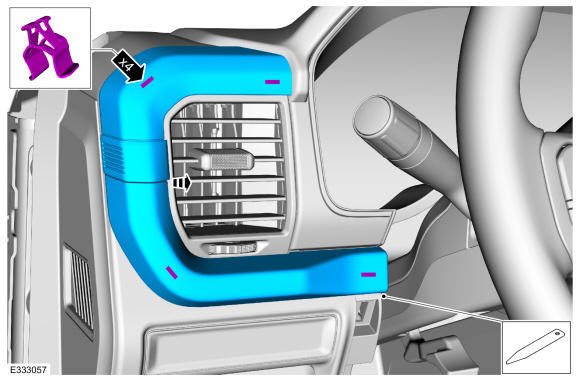

Release the clips and remove the LHregister bezel.

Courtesy of FORD MOTOR COMPANY

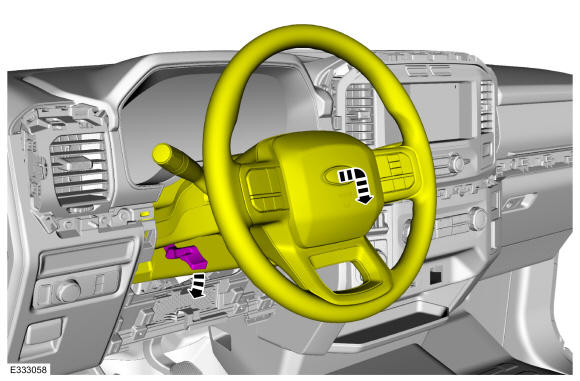

Fully extend and lower the steering column.

Courtesy of FORD MOTOR COMPANY

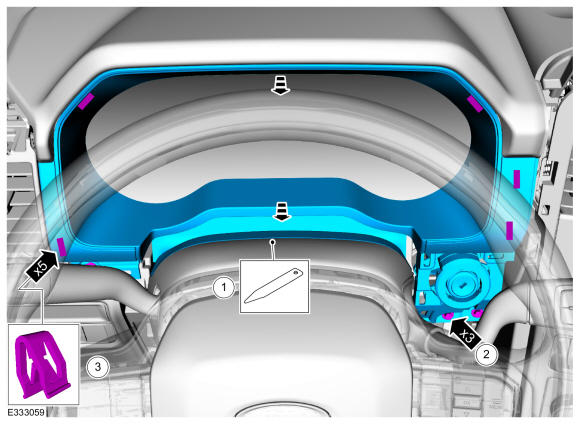

Remove the IPC bezel.
1. Separate the gap hider from the upper steering column shroud.
2. Remove the retainers.
  Torque

  : 22 lb. in (2. 5 Nm)
3. Release the clips and remove the IPC bezel.
Courtesy of FORD MOTOR COMPANY

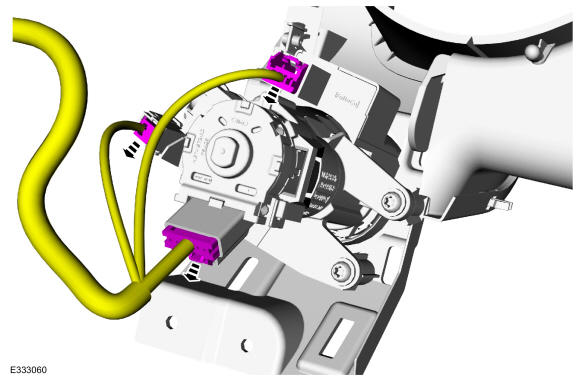

Disconnect the ignition switch electrical connectors.

Courtesy of FORD MOTOR COMPANY

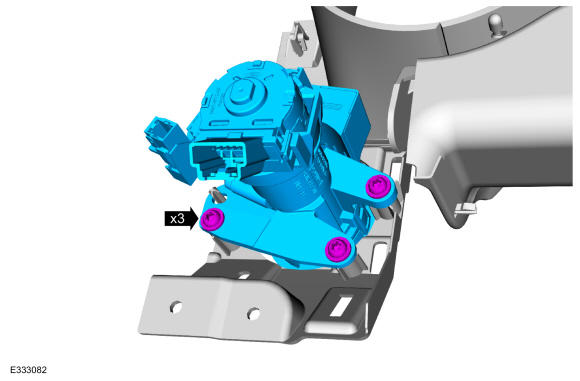

1. Remove the retainers.
2. Remove the ignition switch and lock housing assembly.
- Transfer parts as necessary.

Courtesy of FORD MOTOR COMPANY
