Glove Compartment: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

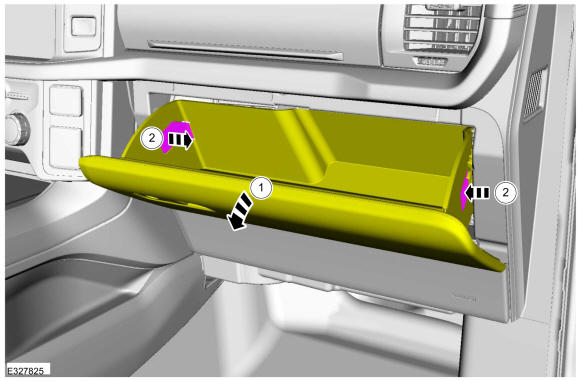

    1. Open the glove compartment.
    2. Depress the stop tabs inward and fully lower the glove compartment.
    GFD562011Courtesy of FORD MOTOR COMPANY

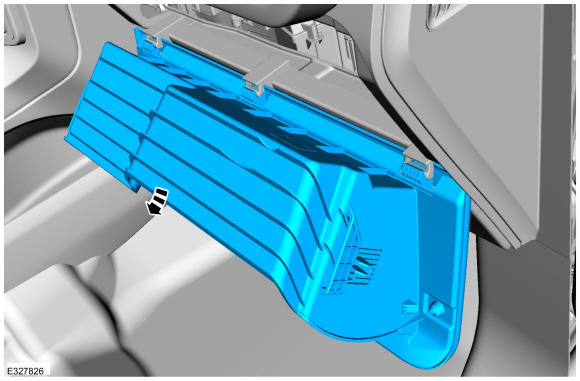

  1. Lift the glove compartment off the hinge.
GFD562012Courtesy of FORD MOTOR COMPANY
