Floor Console: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front seats. Refer to: Front Seat .

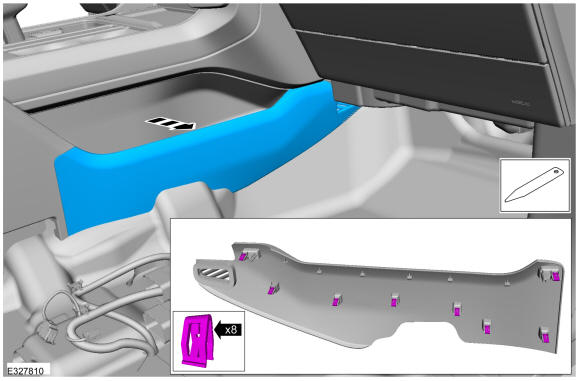

Release the clips and remove the floor console lower RH trim panel.

Courtesy of FORD MOTOR COMPANY

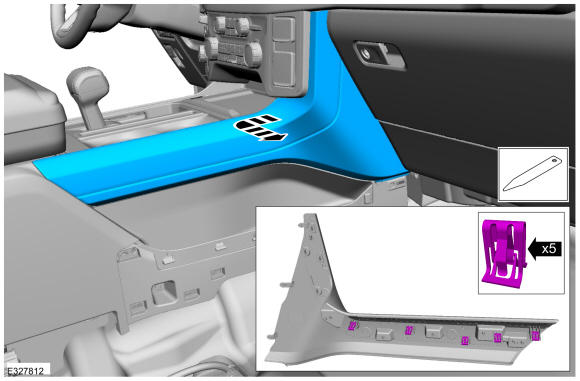

Release the clips and remove the floor console upper RH trim panel.

Courtesy of FORD MOTOR COMPANY

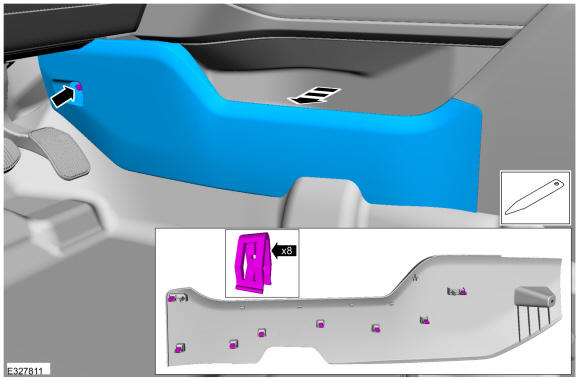

Release the clips and remove the floor console lower LH trim panel.

Courtesy of FORD MOTOR COMPANY

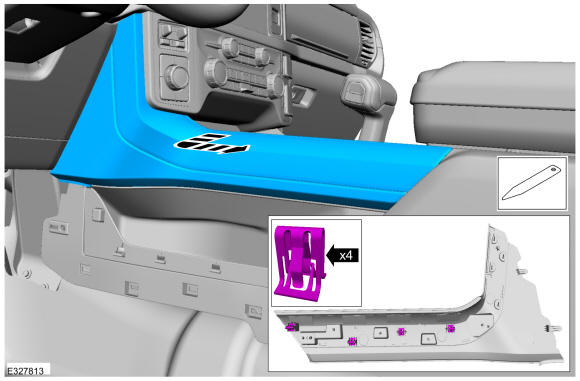

Release the clips and remove the floor console upper LH trim panel.

Courtesy of FORD MOTOR COMPANY

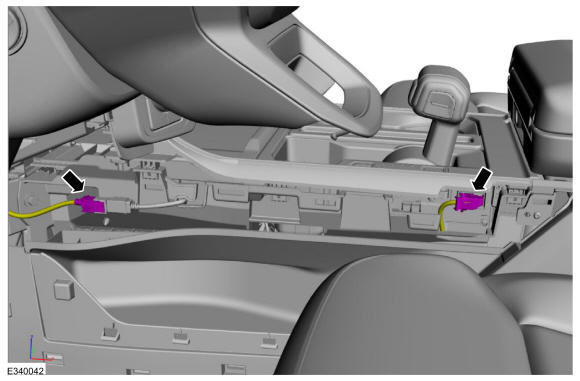

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

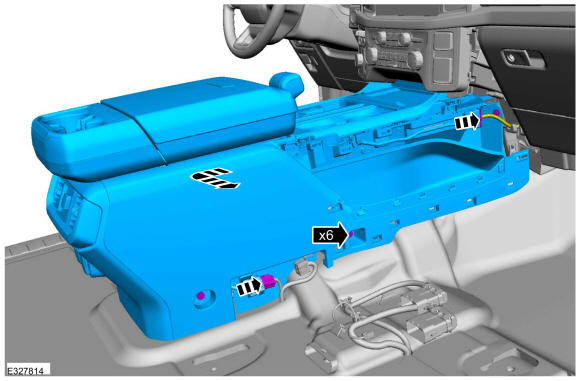

Remove the bolts and the floor console.
- Disconnect the electrical connectors.
  Torque

  : 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
