Auxiliary Power Point: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

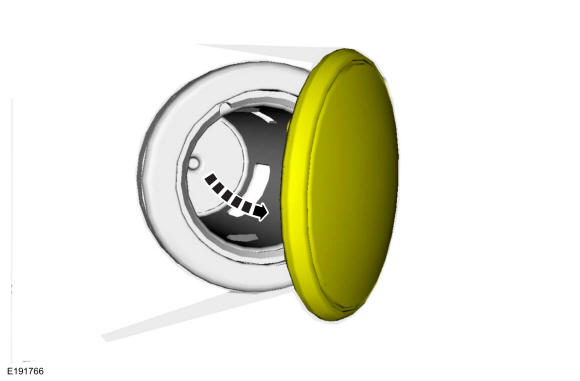

- Open the power point cover.

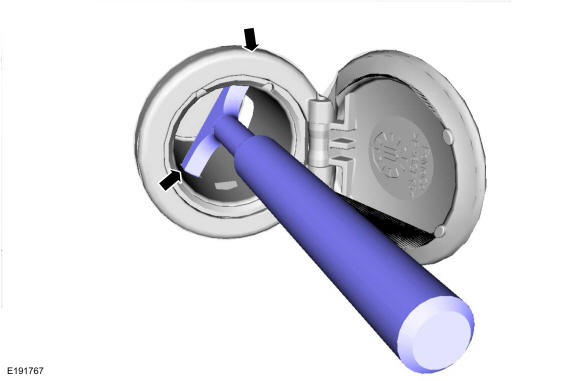

- Position the power point extractor so that it engages in the adjacent slots in the power point socket. Remove Special Service Tool: 501-194 Remover, Power Point.
-
- Install the receiver cup.
- Install and tighten the wing nut. Remove Special Service Tool: 501-194 Remover, Power Point.

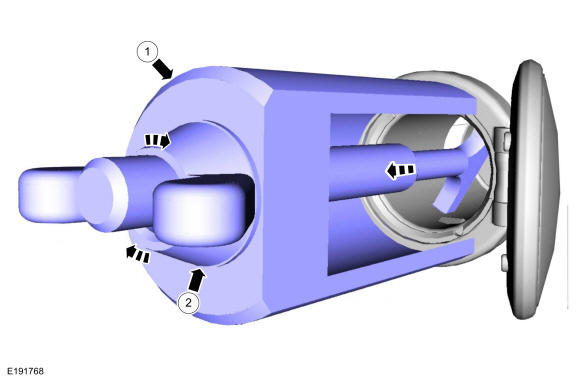

- Tighten the wing nut to pull the power point socket out of the retainer. Remove Special Service Tool: 501-194 Remover, Power Point.
- Disconnect the electrical connector.
