Passive Anti-Theft System (PATS) Transceiver: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ignition switch. Refer to: Ignition Switch - Vehicles With: Keyed Ignition .

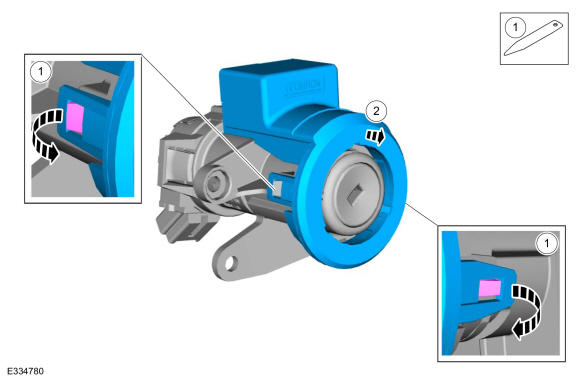

Remove the PATS transceiver.
1. Release the PATS transceiver tabs.
  Use the General Equipment: Interior Trim Remover
2. Remove the PATS transceiver.
