Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-

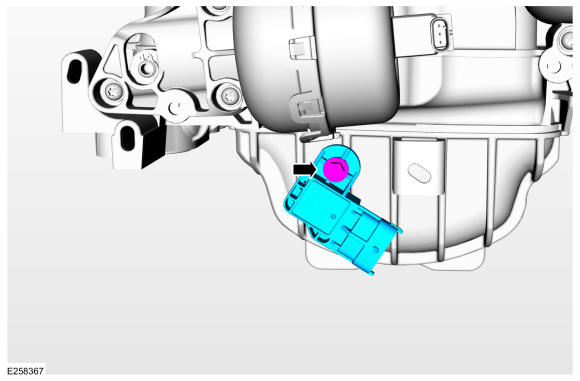

NOTE: Single alternator intake shown in illustration, dual alternator intake similar.
Remove the intake manifold. Refer to: Intake Manifold .
- Remove the retainer and MAPT sensor.
Torque
: 71 lb.in (8 Nm)
