Knock Sensor (KS): Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .
-
NOTE: Note the position of the components before removal.

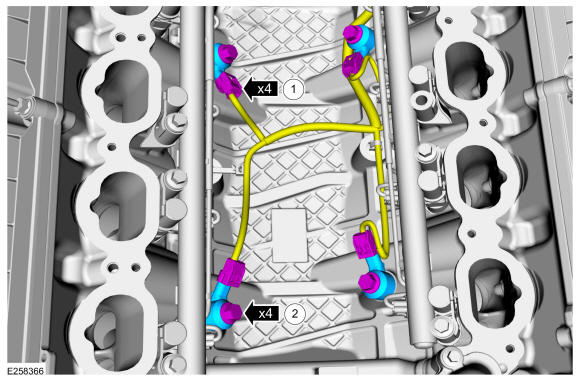

- Disconnect the KS electrical connectors.
- Remove the bolts and the KS.
Torque
: 177 lb.in (20 Nm)
