Intake Manifold Runner Control (IMRC) Actuator: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .

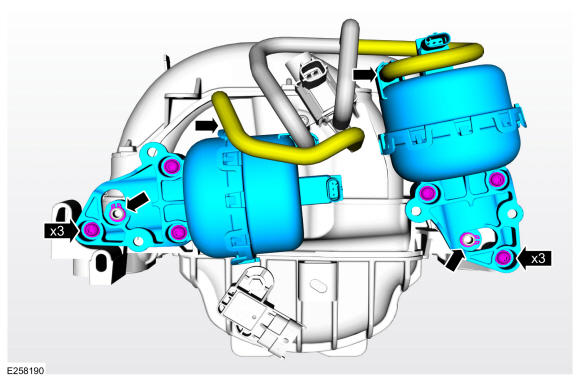

- Remove the hoses, retainers and the IMRC actuators.
Torque
: 35 lb.in (4 Nm)
