Fuel Rail Pressure and Temperature Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

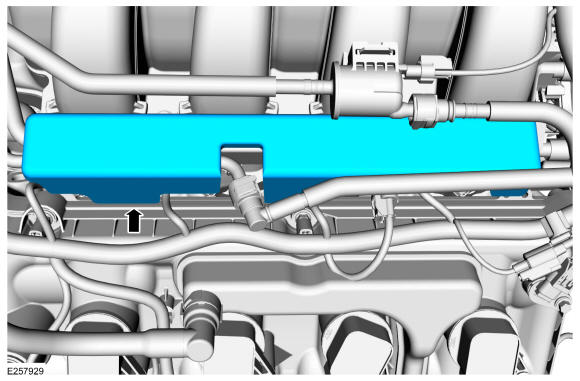

- Remove the fuel rail insulator.

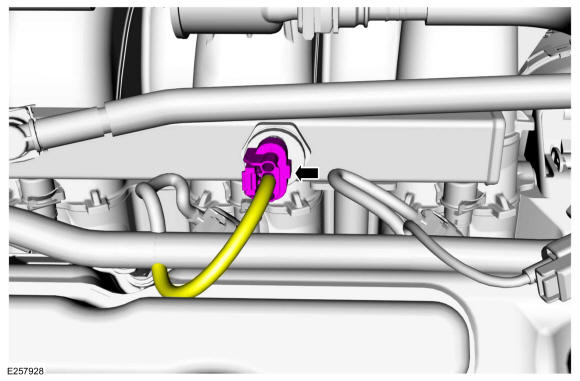

- Disconnect the FRP and temperature sensor electrical connector.

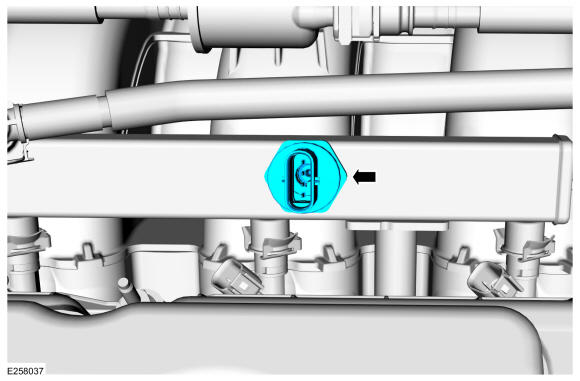

- Remove the FRP and temperature sensor.
Torque
:Stage 1: 53 lb.in (6 Nm)Stage 2: 25°
