Fuel Rail Pressure (FRP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the intake manifold. Refer to: Intake Manifold .

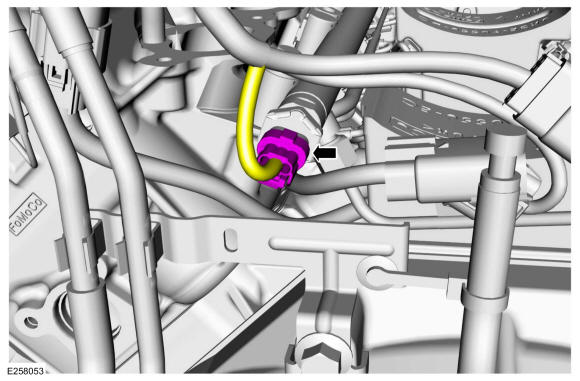

- Disconnect the FRP sensor.
-
NOTE: Torque cannot exceed 40 Nm or there is a potential to damage the FRP sensor.

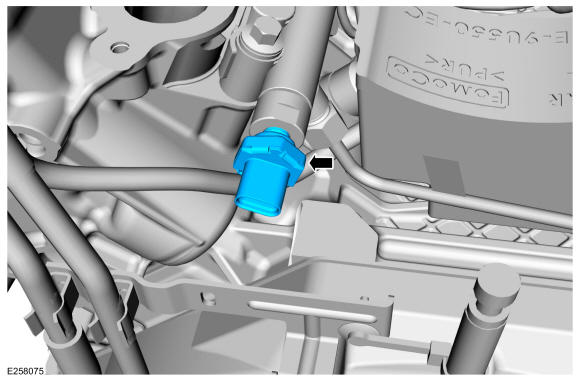

Remove the FRP sensor.
Torque
:Stage 1: 44 lb.in (5 Nm)
Stage 2: Loosen: 1 turn(s)
Stage 3: 44 lb.in (5 Nm)
Stage 4: 19°
