Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
NOTE: Vehicles come with an underbody shield or a skid plate.

If equipped, remove the bolts and the underbody shield.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Vehicles come with an underbody shield or a skid plate.

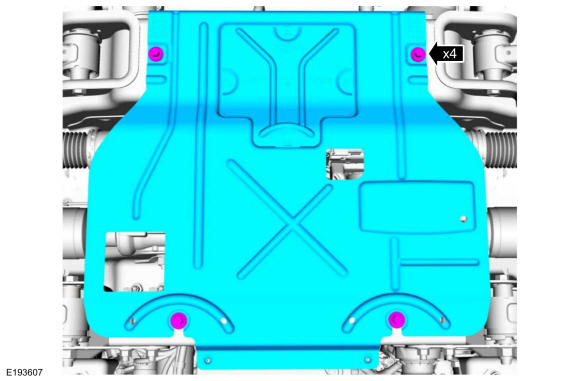

If equipped, remove the bolts and the skid plate.

Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

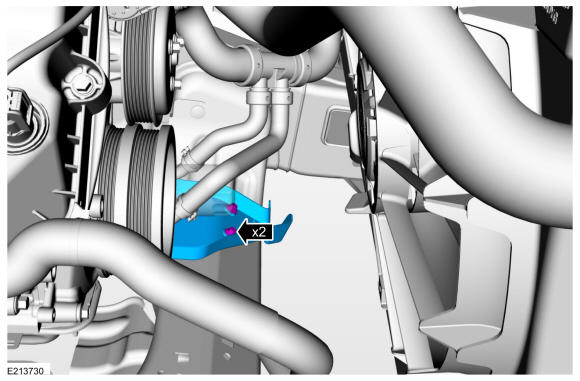

If equipped, remove the bolts and the oil drain gutter.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

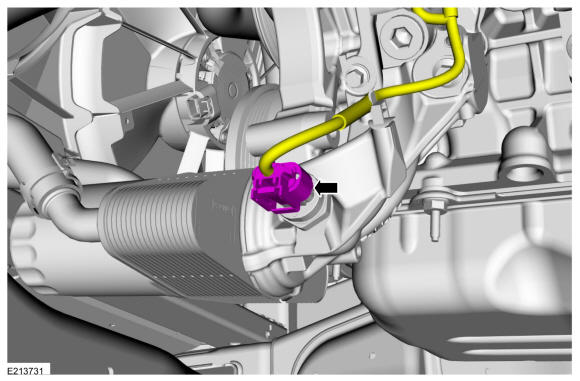

Disconnect the EOP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

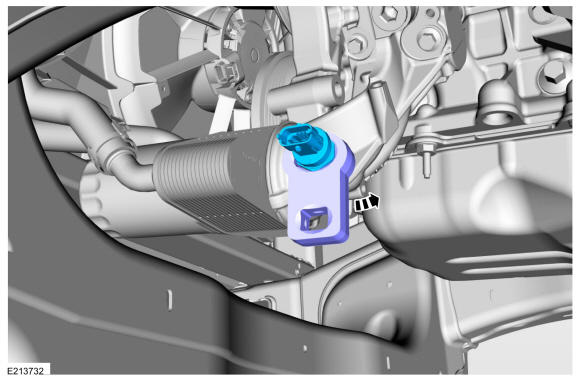

Using a crowfoot, remove the EOP sensor.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
