Cylinder Head Temperature (CHT) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH splash shield. Refer to: Fender Splash Shield .
-

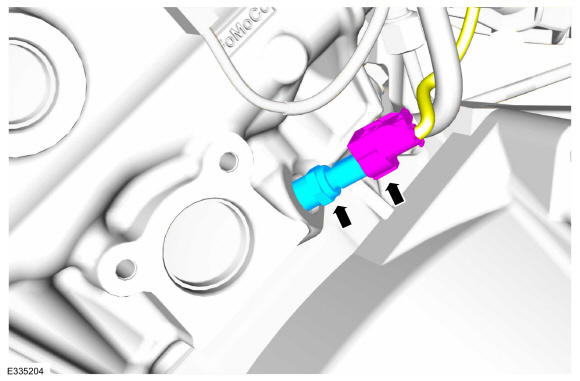

- Disconnect the CHT sensor electrical connector.
- Remove and discard the CHT sensor.
Torque
: 97 lb.in (11 Nm)
