Cylinder Deactivation Solenoid: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Cylinder Deactivation - Cylinder 1 Cylinder 4 Solenoid

Remove the RH valve cover. Refer to: Valve Cover RH .
NOTE: Lubricate the O-rings with clean engine oil.

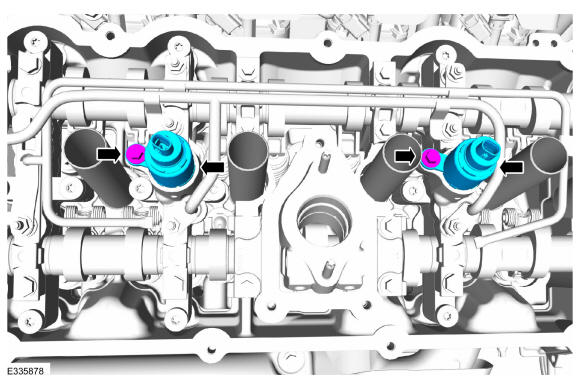

- Remove the retainer. Remove cylinder deactivation cylinder 1 solenoid.
  Torque

  : 97 lb.in (11 Nm)
- Remove the retainer. Remove cylinder deactivation cylinder 4 solenoid.
  Torque

  : 97 lb.in (11 Nm)
Courtesy of FORD MOTOR COMPANY

Cylinder Deactivation - Cylinder 6 Cylinder 7 Solenoid
Remove the LH valve cover. Refer to: Valve Cover LH - Vehicles With: Dual Generators . Refer to: Valve Cover LH .
NOTE: Lubricate the O-rings with clean engine oil.

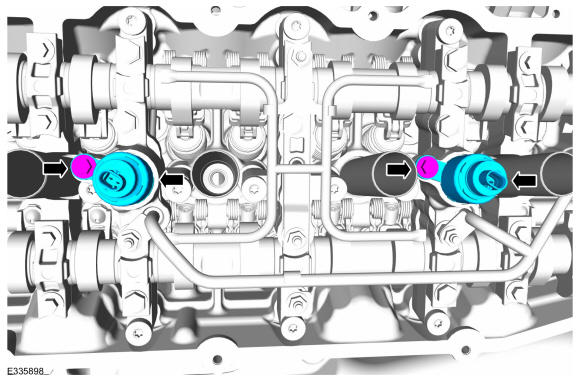

- Remove the retainer. Remove cylinder deactivation cylinder 6 solenoid.
  Torque

  : 97 lb.in (11 Nm)
- Remove the retainer. Remove cylinder deactivation cylinder 7 solenoid.
  Torque

  : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
