Crankshaft Position (CKP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RHF wheel and tire. Refer to: Wheel and Tire .
Remove the RH fender splash shield. Refer to: Fender Splash Shield .

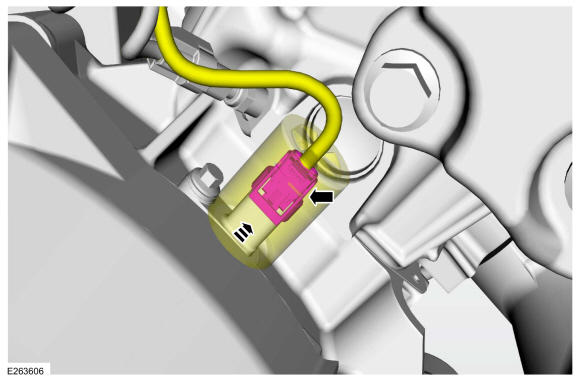

Position the cover and disconnect the CKP sensor electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the bolt and the CKP sensor.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
