Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

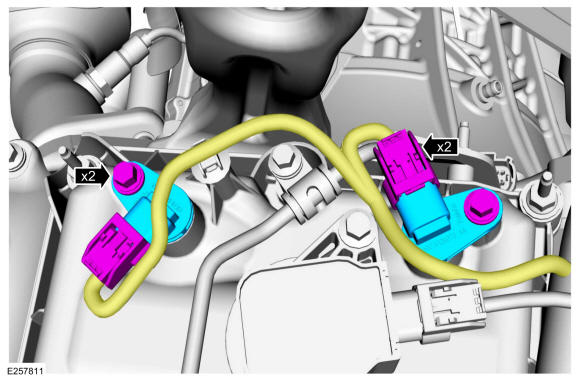

RH (right-hand) Camshaft Position (CMP) Sensors
-
NOTE: Before installation, lubricate the CMP sensor O-ring seal with clean engine oil.
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque
: 66 lb.in (7.5 Nm)
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque
: 66 lb.in (7.5 Nm)

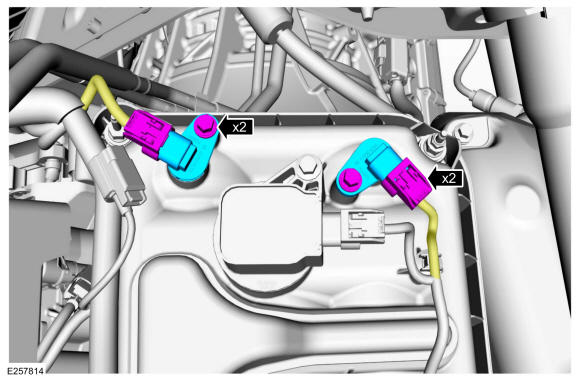

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
-
NOTE: Before installation, lubricate the CMP sensor O-ring seal with clean engine oil.
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque
: 66 lb.in (7.5 Nm)
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Torque
: 66 lb.in (7.5 Nm)
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
