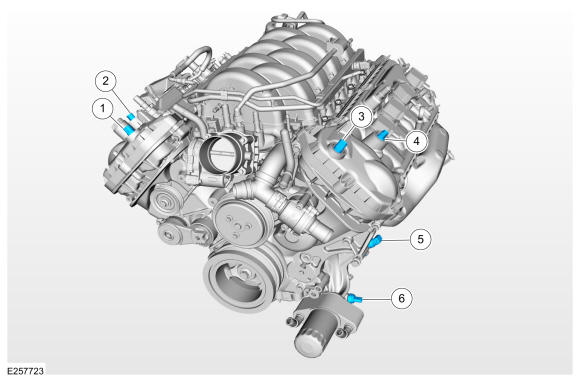

Electronic Engine Controls- Front
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
RH Intake VCT Oil Control Solenoid |
| 2 |
RH Exhaust VCT Oil Control Solenoid |
| 3 |
LH Intake VCT Oil Control Solenoid |
| 4 |
LH Exhaust VCT Oil Control Solenoid |
| 5 |
Oil Pressure Control Solenoid |
| 6 |
EOP Sensor |
