Electronic Engine Controls - Rear Dual Alternator
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|

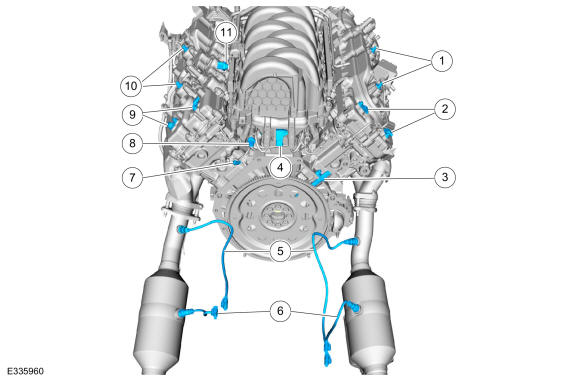

| Item |
Description |
| 1 |
RH Cylinder Deactivation Solenoids |
| 2 |
RHCMP sensors |
| 3 |
CKP sensor |
| 4 |
MAPT sensor |
| 5 |
HO2S |
| 6 |
Catalyst Monitor sensors |
| 7 |
CHT sensor |
| 8 |
FRP sensor |
| 9 |
LHCMP sensors |
| 10 |
LH Cylinder Deactivation Solenoids |
| 11 |
Fuel Rail Pressure and Temperature sensor |
