Variable Camshaft Timing (VCT) Oil Control Solenoid: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the RH valve cover. Refer to: Valve Cover RH .

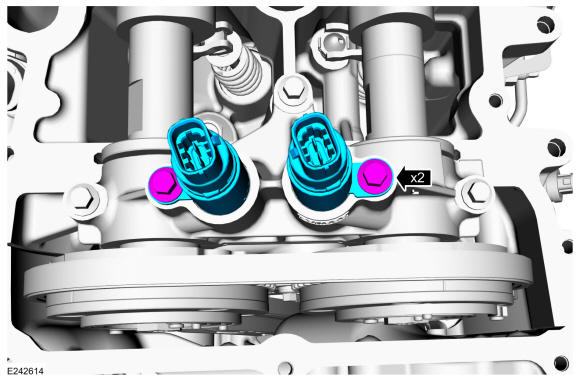

- Remove the bolts and the RHVCT oil control solenoids.
Torque: 89 lb.in (10 Nm)
- Remove the LH valve cover. Refer to: Valve Cover LH .

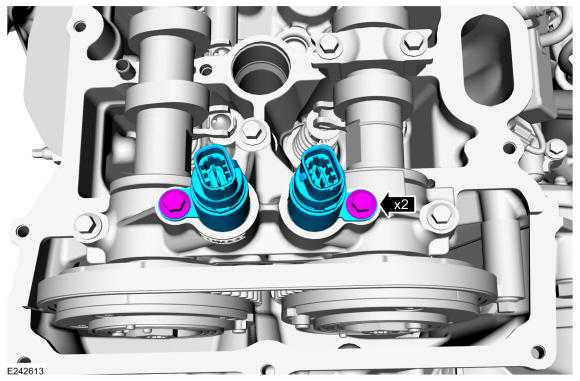

- Remove the bolts and the LHVCT oil control solenoids.
Torque: 89 lb.in (10 Nm)
