Manifold Absolute Pressure and Temperature (MAPT) Sensor: Installation
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:
Lubricate the O-ring seal with clean engine oil.
- Install the MAPT sensor and the bolt.
Torque: 27 lb.in (3 Nm)
- Connect the MAPT electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

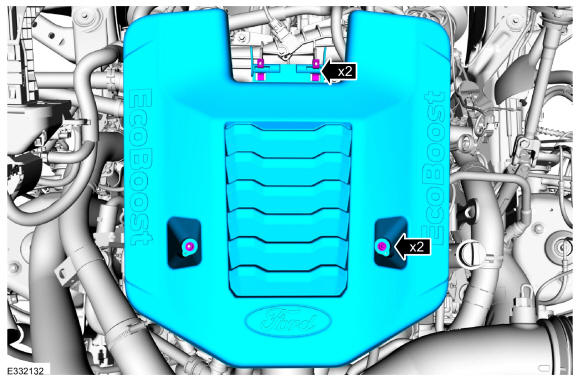

- Install the engine appearance cover.
 Courtesy of FORD MOTOR COMPANY
|
