Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Heated Oxygen Bank 1 Sensor 1

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. If equipped, remove the underbody shield.
    GFD558254Courtesy of FORD MOTOR COMPANY
  3. If equipped, remove the underbody skid plate.
    GFD558255Courtesy of FORD MOTOR COMPANY
  4. Disconnect the electrical connector and harness retainer. Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material

    : Motorcraft® Penetrating and Lock Lubricant / XL-1

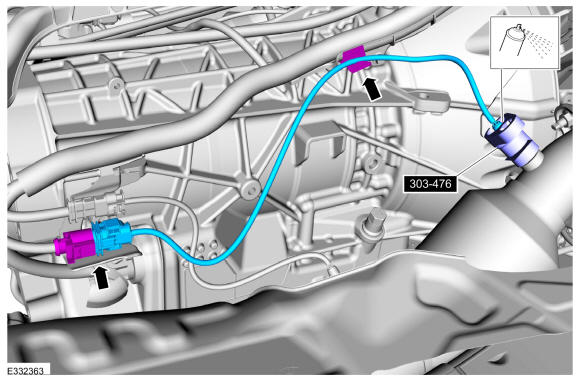

    GFD558304Courtesy of FORD MOTOR COMPANY

    Heated Oxygen Bank 2 Sensor 1

  5. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  6. If equipped, remove the underbody shield.
    GFD558254Courtesy of FORD MOTOR COMPANY
  7. If equipped, remove the underbody skid plate.
    GFD558255Courtesy of FORD MOTOR COMPANY
  8. Disconnect the electrical connector and harness retainer. Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material

    : Motorcraft® Penetrating and Lock Lubricant / XL-1

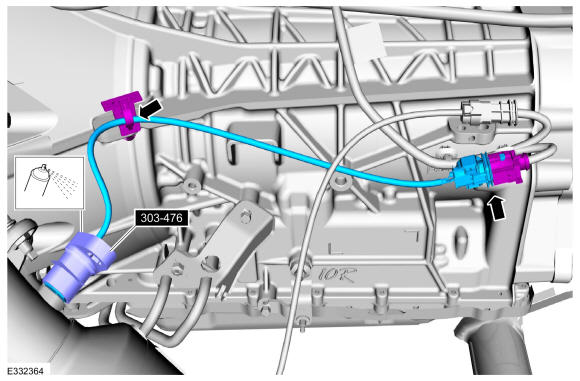

GFD558305Courtesy of FORD MOTOR COMPANY
