Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All Sensors
- Remove the nuts and engine appearance cover.
Torque: 89 lb.in (10 Nm)

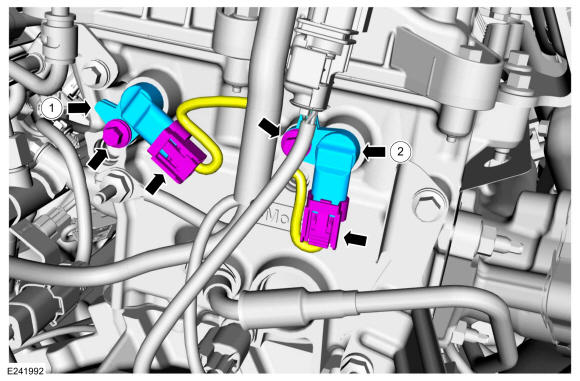

RH (right-hand) Camshaft Position (CMP) Sensors
-
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
Material
: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
Material
: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque: 89 lb.in (10 Nm)

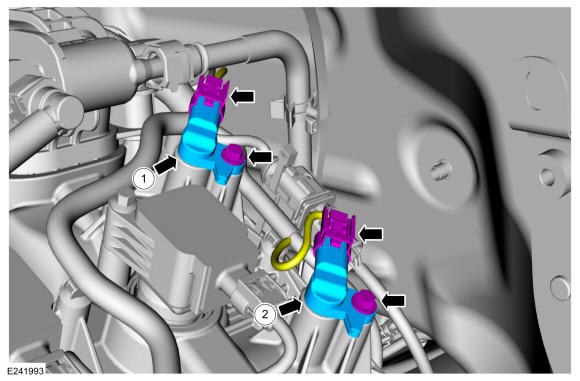

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
-
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
Material
: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
Material
: Engine Oil - SAE 5W-30 - Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C946-B1)
Torque: 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
