Oil Pressure Control Solenoid: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the engine front cover. Refer to: Engine Front Cover .

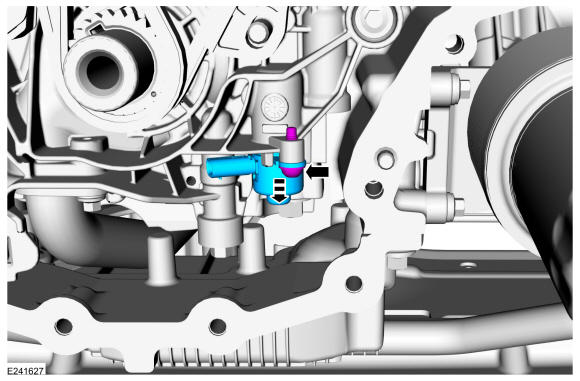

  2. Remove oil pressure control solenoid.

    Torque

    : 89 lb.in (10 Nm)

GFD558237Courtesy of FORD MOTOR COMPANY
