Knock Sensor (KS): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the direct injection fuel rail LH and RH side. Refer to: Direct Injection Fuel Rail LH . Refer to: Direct Injection Fuel Rail RH .

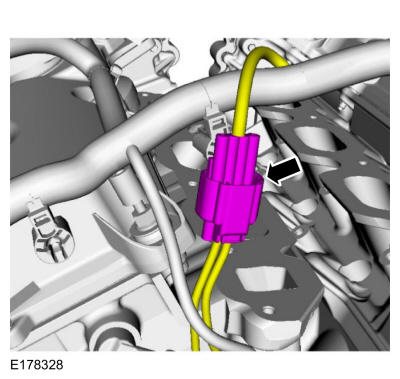

Disconnect the KS electrical connector.

Courtesy of FORD MOTOR COMPANY

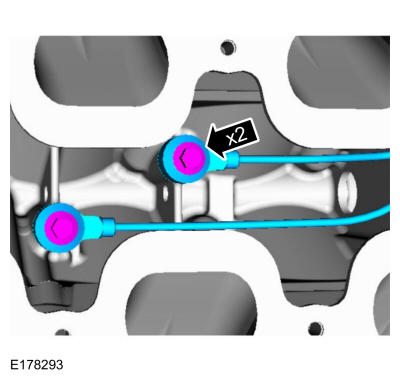

Remove the bolts and the KS.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
