Fuel Rail Pressure (FRP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Release the fuel system pressure. Refer to: Fuel System Pressure Release .
Remove the intake manifold. Refer to: Intake Manifold .

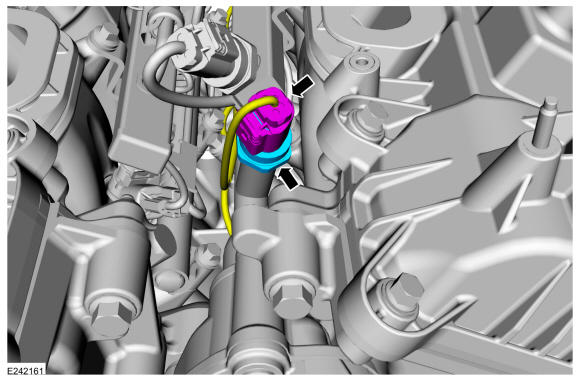

- Disconnect the FRP sensor electrical connector.
- Remove the FRP sensor.
  Torque

  : 24 lb.ft (33 Nm)
