Camshaft Position (CMP) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All Sensors

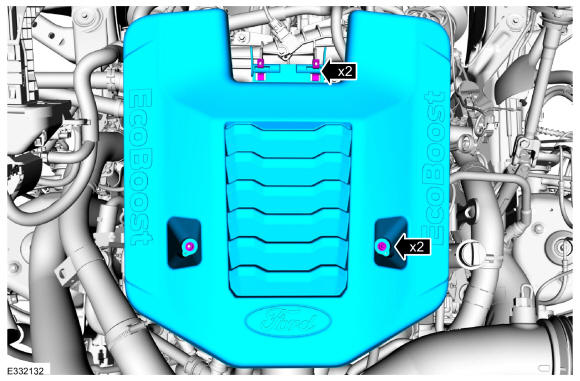

Remove the nuts and engine appearance cover.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

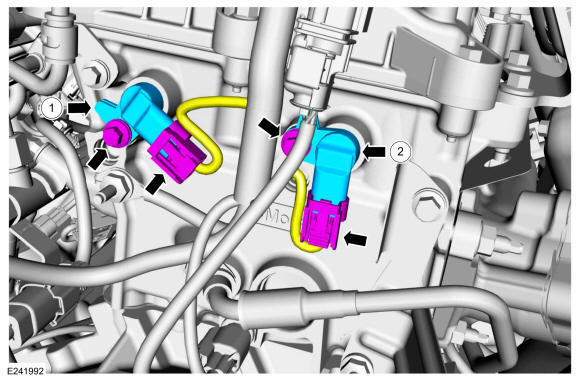

RH (right-hand) Camshaft Position (CMP) Sensors
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)

  Torque

  : 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)

  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

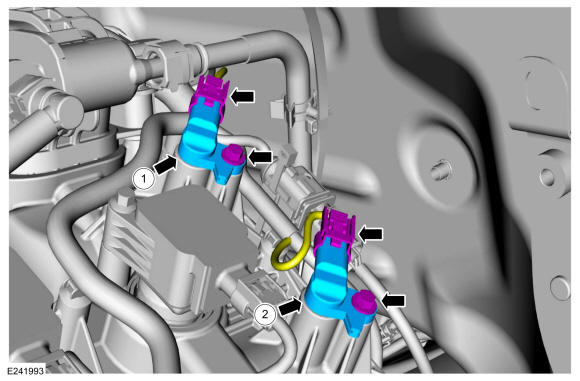

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the electrical connector, remove the retainer and the intake CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)

  Torque

  : 89 lb.in (10 Nm)
- Disconnect the electrical connector, remove the retainer and the exhaust CMP sensor.
  Material

  : Motorcraft® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-Q1SP (WSS-M2C961-A1)

  Torque

  : 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
